Trek top fuel al frameset gen 4

179.00
999.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews
          • Its lightweight frame and versatile geometry make it the perfect choice for all kinds of rides and all kinds of riders
          • With a 120mm shock (compatibility for up to 130mm), and capability for running a 120 to 140mm fork, its ready to be as playful and confident as youd like
          • The four-position Mino Link lets you tweak your geometry and suspension progression four different ways
          • The Alpha Platinum Aluminum frame is robust, yet light, and packs in updated internal frame storage for easy access to gear and snacks
          • Its ready for anything with room for extra-long dropper posts and compatibility for rolling 29er or MX wheel setups – or even 27.5" on small frames

          Make Top Fuel yours

          Opt for light parts and a 120mm fork for a featherweight Top Fuel, or a 140mm fork and longer-stroke 130mm rear shock for extra versatility. Room for a longer dropper and MX wheels lets you customize Top Fuel into an ultimate playful trail whip.

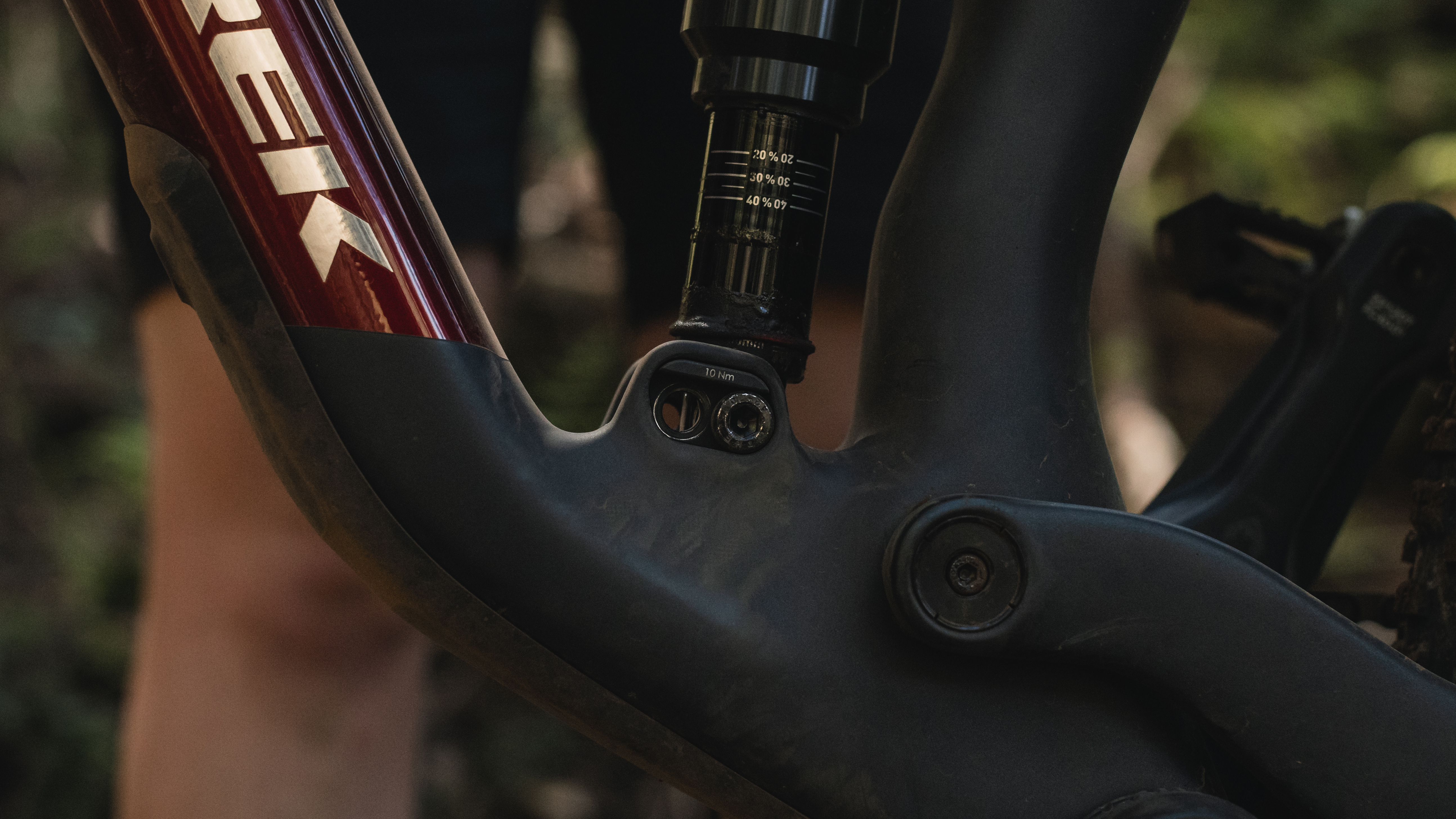

          4-way Mino Link

          Easily adjust the suspension and geometry four different ways for where and how you ride. With the flip of a chip, you can ride with more or less progressive suspension, and tweak your geometry for a slacker head tube and lower BB or steeper head tube and higher BB.

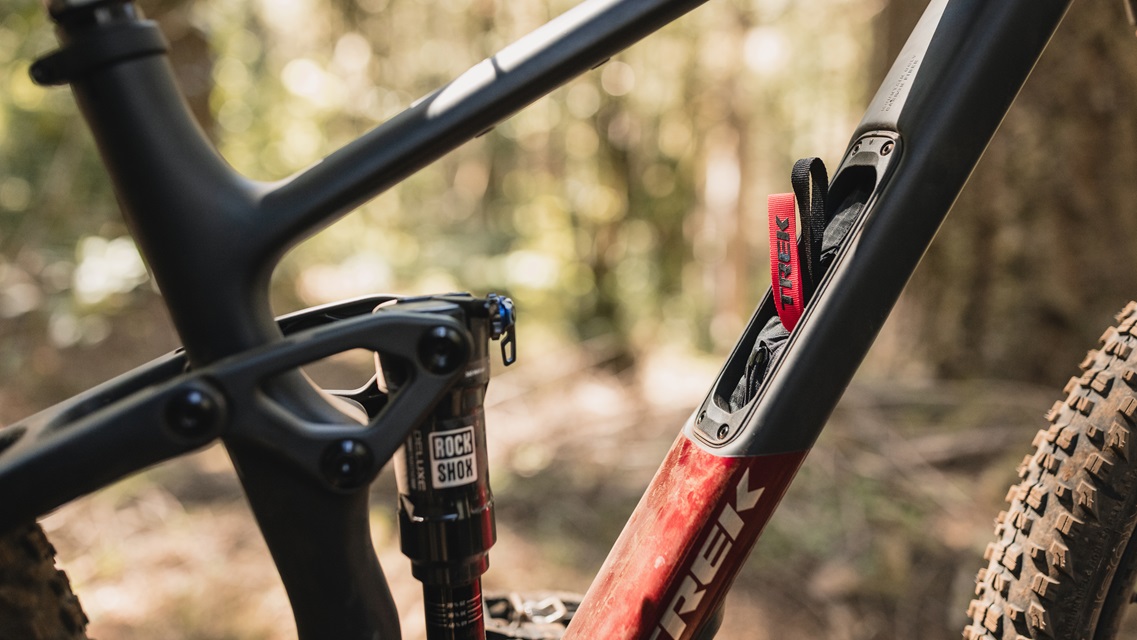

          New internal storage with new BITS bags

          New internal frame storage bags make it easy to ditch the pack and still carry your ride essentials.

          Active Braking Pivot

          Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.


          Frame Alpha Platinum Aluminum, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120mm travel
          Shock Fox Performance Float DPS, 2-position damper, 185mm x 50mm
          Skewer Rear Bontrager Switch thru axle, removable lever

          Geometry Chart

          B B Drop 1
          Chainstay Length 43.4
          Eff Seat Tube Angle 76.5°
          Eff Top Tube 55.8
          Frame Reach 42.2
          Frame Size Letter S
          Frame Stack 56.6
          Head Angle 65.9°
          Head Tube Length 10.5
          Offset 4.3
          Position High
          Seat Tube 36
          Seat Tube Angle 69.5°
          Standover 70.5
          Trail 11.1
          Wheelbase 115
          Wheel Size 27.5"
          B B Drop 2.6
          Chainstay Length 43.4
          Eff Seat Tube Angle 77.3°
          Eff Top Tube 58.7
          Frame Reach 45.2
          Frame Size Letter M
          Frame Stack 59.9
          Head Angle 65.9°
          Head Tube Length 10.5
          Offset 4.3
          Position High
          Seat Tube 41
          Seat Tube Angle 70.5°
          Standover 75.5
          Trail 12.1
          Wheelbase 118.8
          Wheel Size 29"
          B B Drop 2.6
          Chainstay Length 43.9
          Eff Seat Tube Angle 76.6°
          Eff Top Tube 61.1
          Frame Reach 46.7
          Frame Size Letter ML
          Frame Stack 60.4
          Head Angle 65.9°
          Head Tube Length 11
          Offset 4.3
          Position High
          Seat Tube 42
          Seat Tube Angle 70.5°
          Standover 75.5
          Trail 12.1
          Wheelbase 121
          Wheel Size 29"
          B B Drop 2.6
          Chainstay Length 43.9
          Eff Seat Tube Angle 76.3°
          Eff Top Tube 63
          Frame Reach 48.2
          Frame Size Letter L
          Frame Stack 60.8
          Head Angle 65.9°
          Head Tube Length 11.5
          Offset 4.3
          Position High
          Seat Tube 43.5
          Seat Tube Angle 70.5°
          Standover 76
          Trail 12.1
          Wheelbase 122.7
          Wheel Size 29"
          B B Drop 2.6
          Chainstay Length 44.4
          Eff Seat Tube Angle 75.6°
          Eff Top Tube 67.2
          Frame Reach 51.2
          Frame Size Letter XL
          Frame Stack 62.6
          Head Angle 65.9°
          Head Tube Length 13.5
          Offset 4.3
          Position High
          Seat Tube 47
          Seat Tube Angle 70.5°
          Standover 76.5
          Trail 12.1
          Wheelbase 127
          Wheel Size 29"
