Trek top fuel 8 gx axs t-type gen 3

179.00
999.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews
          • This bike’s killer suspension setup is both efficient and ready to party
          • You get clean shifts, even under load, with SRAMs smart, smooth, and completely wireless GX Eagle AXS transmission
          • Mino Link lets you make small adjustments to your geometry quickly and easily, even mid-ride
          • A sleek internal storage compartment gives you a versatile spot to stow tools and gear

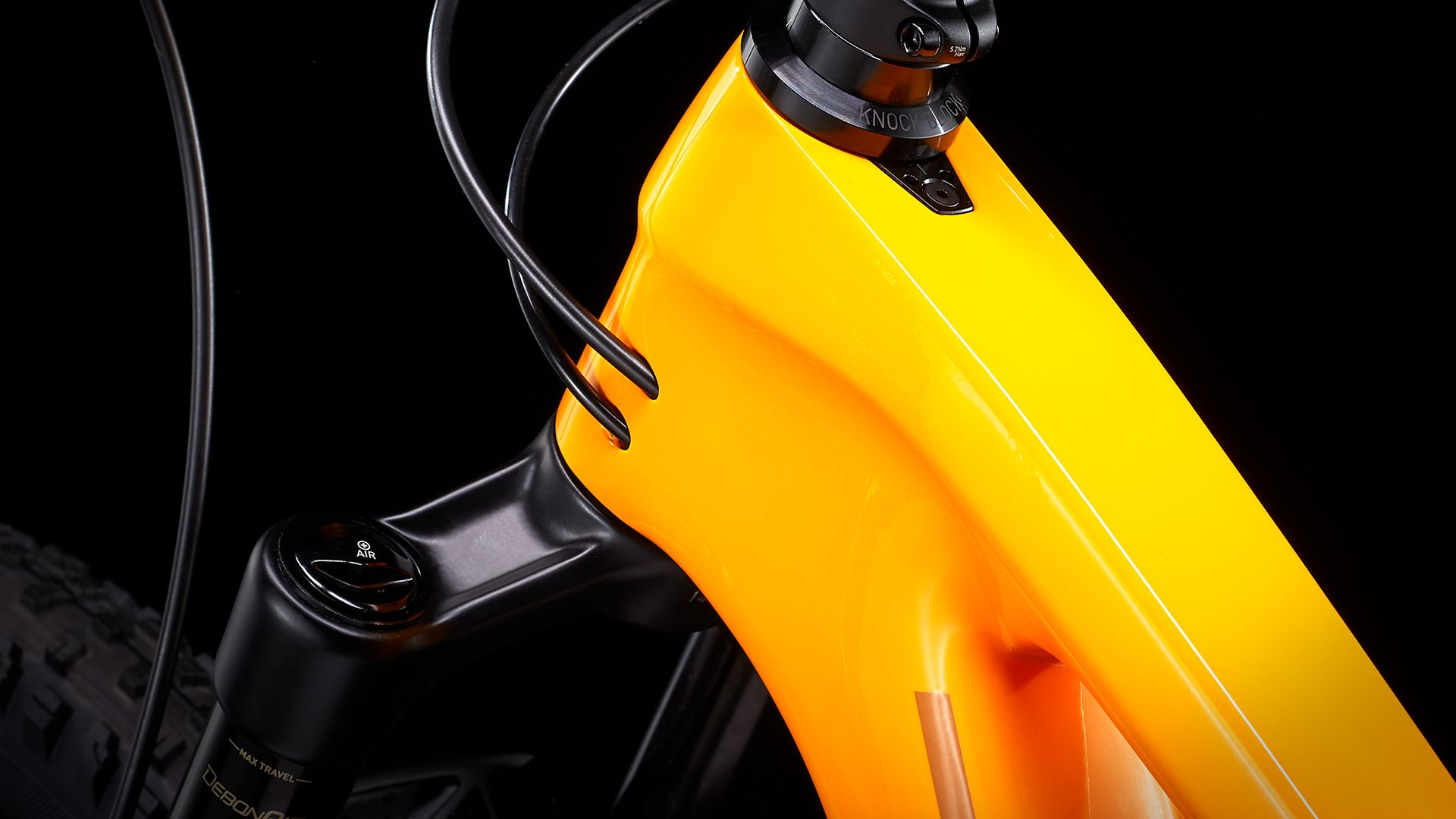

          • New, removable Knock Block has a bigger steering angle to keep cables and hoses safe without sacrificing turning radius

          Active Braking Pivot

          Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

          Quick and in control

          120mm of rear travel combined with progressive trail geometry gives you a fast, responsive ride that helps you keep your cool when the trail turns rowdy.

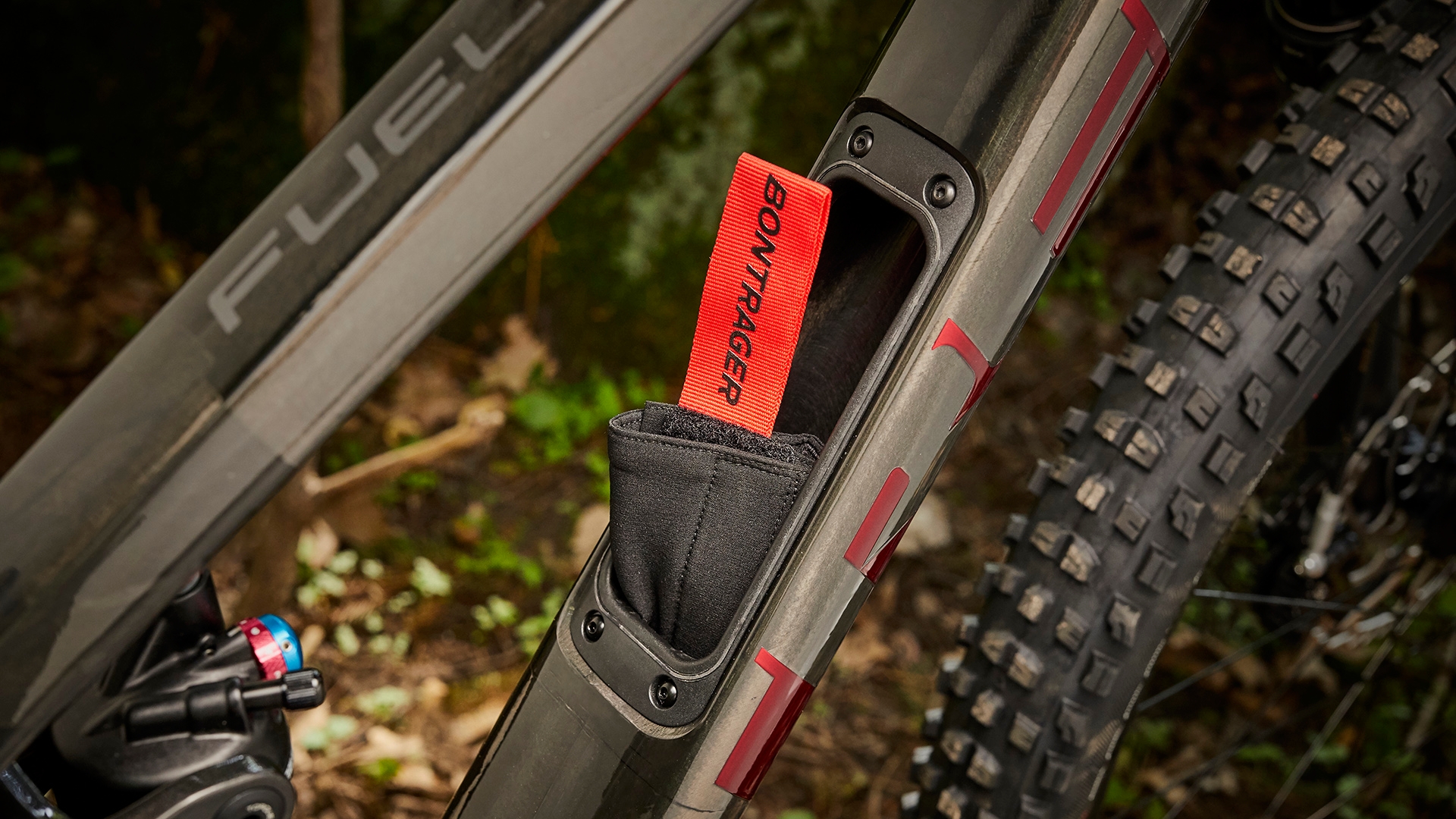

          Internal Storage

          Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

          Hassle-free routing

          Guided internal cable routing keeps Top Fuel quiet on the trail and maintenance a breeze.

          Will my bike have a curved top tube?

          Smaller frames (XS and S) have a curved top tube. This design makes for a lower standover height, which allows shorter riders to straddle the bike more easily. Larger frames (M and up) have a straight top tube because taller riders with longer legs typically dont have the same issues with standover height.

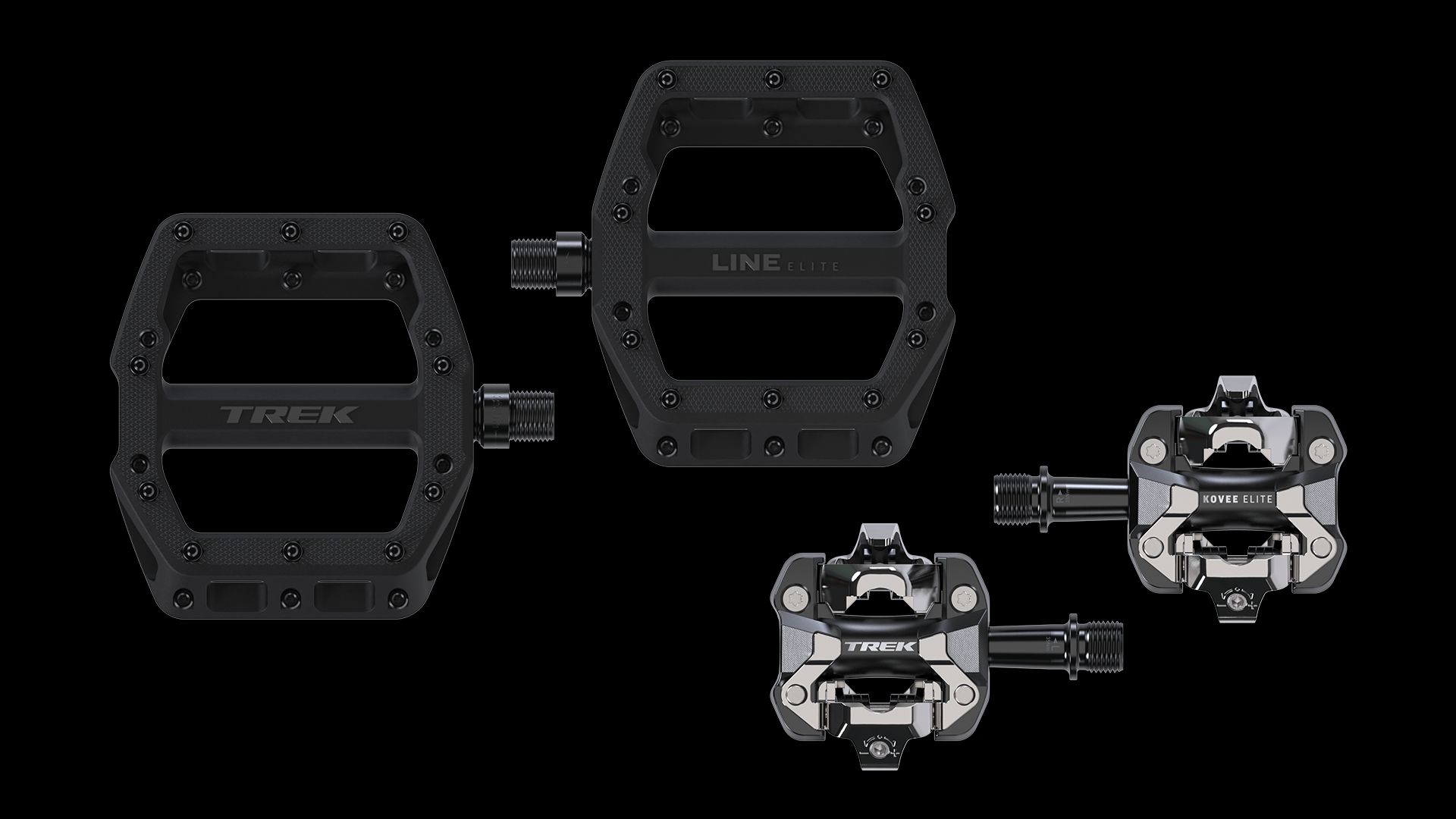

          You almost forgot your pedals

          This bike doesn’t come with pedals because youll have a better ride if you choose your own. Explore the pedal guide to find the best pedals for your riding style. Reach for flat pedals for simple versatility or go for clipless MTB pedals if you want control & efficiency.


          Frame Alpha Platinum Aluminum, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel
          Fork RockShox Pike, DebonAir spring, Rush RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 130mm travel
          Shock RockShox Deluxe Ultimate RCT, 185mm x 50mm
          Wheel Front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29 /
          Wheel Rear Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29
          Tire Part Bontrager TLR sealant, 6oz
          Rim Strip Bontrager TLR
          Skewer Rear Bontrager Switch thru axle, removable lever
          Shifter SRAM AXS POD
          Rear Derailleur SRAM GX Eagle AXS, T-Type
          Crank SRAM GX Eagle, T-Type, DUB, 30T, 55mm chainline, 170mm length
          Bottom Bracket SRAM DUB MTB Wide, 73mm, BSA threaded
          Cassette SRAM Eagle XS-1275, T-Type,10-52, 12 speed
          Chain SRAM GX Eagle, T-Type, 12 speed
          Brake SRAM DB 8 4-piston hydraulic disc // SRAM DB 8 4-piston hydraulic disc
          Brake Rotor SRAM CenterLine, 6-bolt, round edge, 180mm
          Saddle Bontrager Verse P3, chromoly rails
          Seatpost Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length
          Handlebar Bontrager Line, alloy, 35mm, 27.5mm rise, 750mm width
          Stem Bontrager Elite, 35mm, 0 degree, 45mm length
          Headset Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8 top, 1.5 bottom // Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8 top, 1.5 bottom
          Grips Bontrager XR Trail Comp, nylon lock-on
          Battery SRAM eTap battery pack (with charger)

          Geometry Chart

          B B Drop 2.7
          B B Height 34.6
          Chainstay Length 43.4
          Eff Seat Tube Angle 75.9°
          Eff Top Tube 56.9
          Frame Reach 41.9
          Frame Size Letter S
          Frame Size Number 15.5"
          Frame Stack 59.6
          Head Angle 65.9°
          Head Tube Length 10
          Offset 4.3
          Position High
          Seat Tube 39.5
          Seat Tube Angle 69.9°
          Standover 72.4
          Trail 12
          Wheelbase 115.3
          Wheel Size 29"
          B B Drop 2.7
          B B Height 34.6
          Chainstay Length 43.4
          Eff Seat Tube Angle 75.9°
          Eff Top Tube 59.9
          Frame Reach 44.9
          Frame Size Letter M
          Frame Size Number 17.5"
          Frame Stack 59.6
          Head Angle 65.9°
          Head Tube Length 10
          Offset 4.3
          Position High
          Seat Tube 42
          Seat Tube Angle 69.9°
          Standover 74.4
          Trail 12
          Wheelbase 118.3
          Wheel Size 29"
          B B Drop 2.7
          B B Height 34.6
          Chainstay Length 43.4
          Eff Seat Tube Angle 75.9°
          Eff Top Tube 61.5
          Frame Reach 46.4
          Frame Size Letter ML
          Frame Size Number 18.5"
          Frame Stack 60
          Head Angle 65.9°
          Head Tube Length 10.5
          Offset 4.3
          Position High
          Seat Tube 43.5
          Seat Tube Angle 69.9°
          Standover 74.9
          Trail 12
          Wheelbase 120
          Wheel Size 29"
          B B Drop 2.7
          B B Height 34.6
          Chainstay Length 43.4
          Eff Seat Tube Angle 75.9°
          Eff Top Tube 63.1
          Frame Reach 47.9
          Frame Size Letter L
          Frame Size Number 19.5"
          Frame Stack 60.5
          Head Angle 65.9°
          Head Tube Length 11
          Offset 4.3
          Position High
          Seat Tube 45
          Seat Tube Angle 69.9°
          Standover 75.4
          Trail 12
          Wheelbase 121.7
          Wheel Size 29"
          B B Drop 2.7
          B B Height 34.6
          Chainstay Length 43.4
          Eff Seat Tube Angle 75.9°
          Eff Top Tube 65.4
          Frame Reach 49.9
          Frame Size Letter XL
          Frame Size Number 21.5"
          Frame Stack 61.9
          Head Angle 65.9°
          Head Tube Length 12.5
          Offset 4.3
          Position High
          Seat Tube 50
          Seat Tube Angle 69.9°
          Standover 76.4
          Trail 12
          Wheelbase 124.4
          Wheel Size 29"
          B B Drop 2.7
          B B Height 34.6
          Chainstay Length 43.4
          Eff Seat Tube Angle 69.9°
          Eff Top Tube 67.7
          Frame Reach 51.9
          Frame Size Letter XXL
          Frame Size Number 23.0"
          Frame Stack 63
          Head Angle 65.9°
          Head Tube Length 13.5
          Offset 4.3
          Position High
          Seat Tube 54
          Seat Tube Angle 75.9°
          Standover 76.4
          Trail 11.2
          Wheelbase 126.8
          Wheel Size 29"
