Trek supercaliber slr gen 2 frameset

179.00
999.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews

          Nothing else like it

          Supercaliber’s unique frame design ditches traditional suspension hardware so there’s less weight, less maintenance, and less lateral flex. IsoStrut connects the mainframe to the pivot-less seat stays to offer about 80mm of rear wheel travel. This design offers a unique blend of efficiency, traction, and fatigue-fighting compliance that keeps racers fresh and in control.

          IsoStrut

          IsoStrut integrated suspension gives you just enough travel to stay in control. Its fully tuneable like a standard rear shock, but without the weight penalty of a full suspension bike.

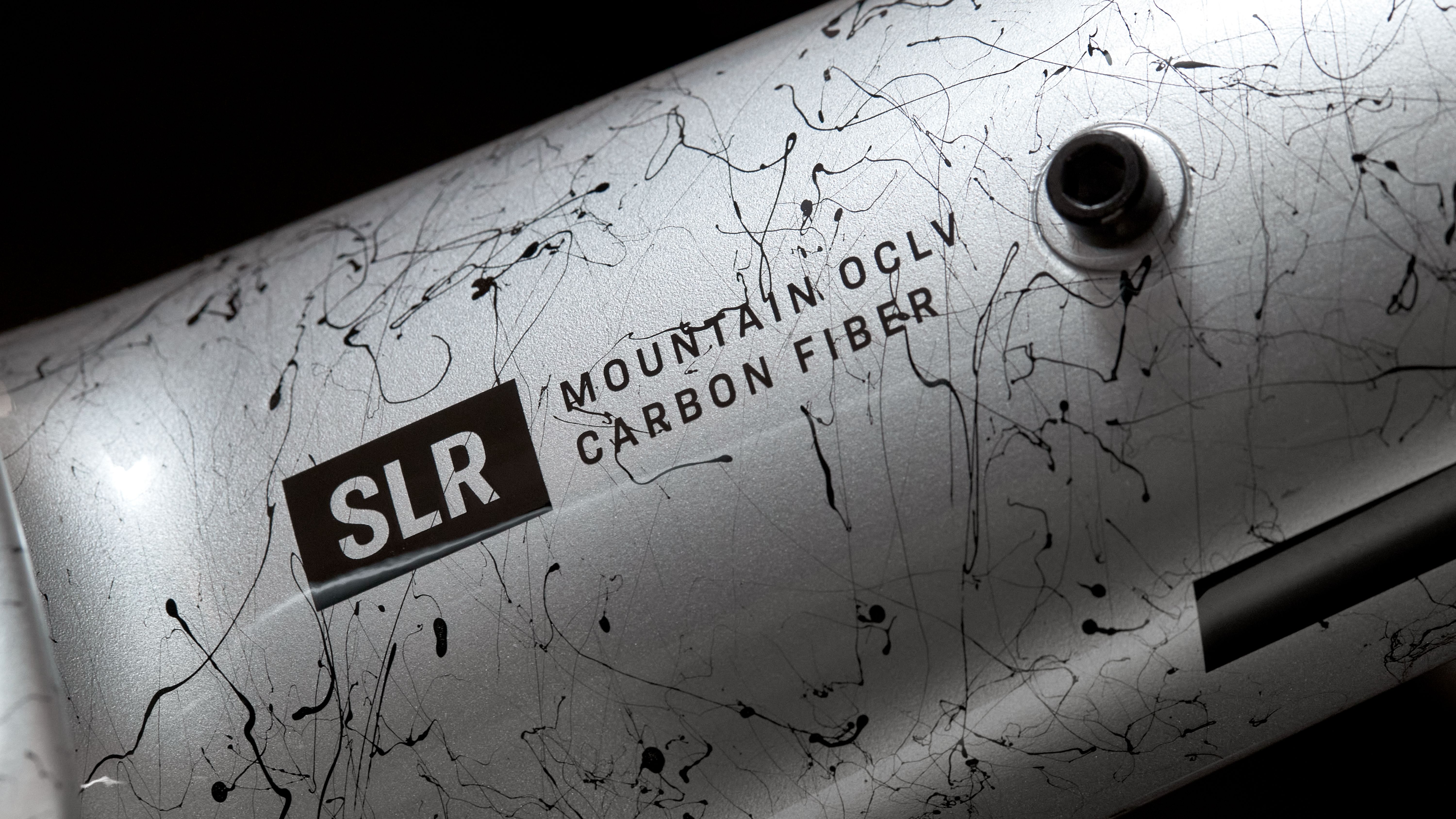

          SLR OCLV Mountain Carbon

          Supercaliber SLR is the World Cup lightweight frame. It drops grams by using a higher modulous carbon fiber layup that allows us to use less material, plus we skip internal guide tubes for cable routing, minimizing material and maximizing weight savings.


          Frame SLR OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel

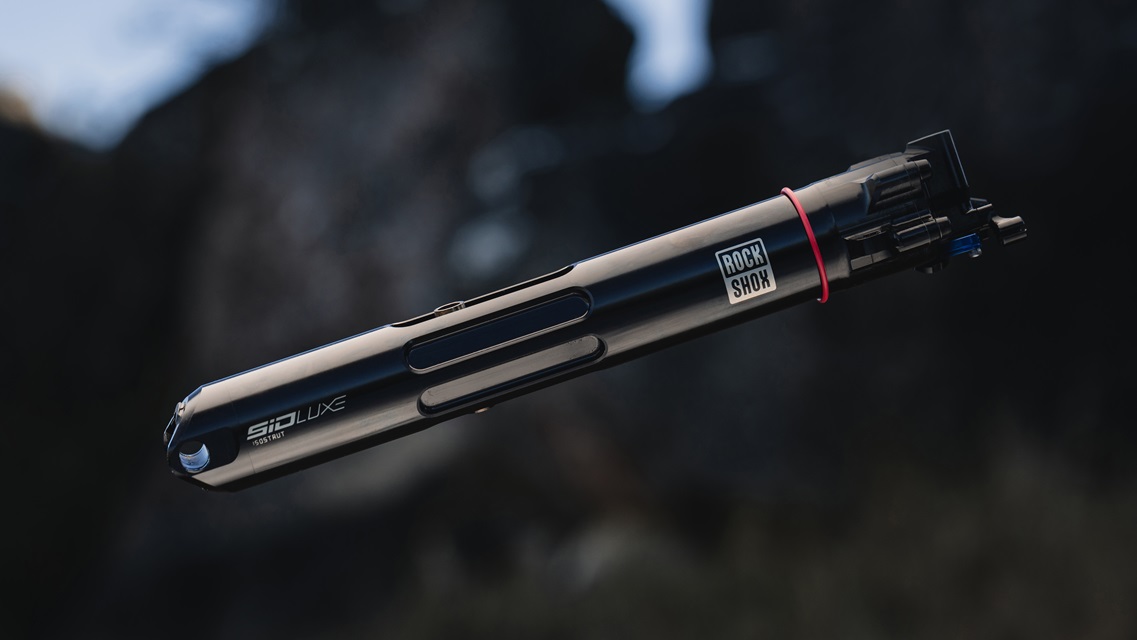

          Shock Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
          Skewer Rear Bontrager Switch thru axle, removable lever
          Headset FSA IS-2, 1-1/8 top, 1.5 bottom

          Geometry Chart

          B B Drop 4.6
          B B Height 32.7
          Chainstay Length 43.5
          Eff Seat Tube Angle 74.5°
          Eff Top Tube 57.1
          Frame Reach 41
          Frame Size Letter S
          Frame Stack 59
          Head Angle 67.5°
          Head Tube Length 9
          Offset 4.3
          Seat Tube 39.5
          Seat Tube Angle 70.5°
          Standover 76
          Trail 10.9
          Wheelbase 111.3
          Wheel Size 29"
          B B Drop 4.6
          B B Height 32.7
          Chainstay Length 43.5
          Eff Seat Tube Angle 74.5°
          Eff Top Tube 59.2
          Frame Reach 43.5
          Frame Size Letter M
          Frame Stack 59
          Head Angle 67.5°
          Head Tube Length 9
          Offset 4.3
          Seat Tube 42
          Seat Tube Angle 71.0°
          Standover 77.2
          Trail 10.9
          Wheelbase 113.8
          Wheel Size 29"
          B B Drop 4.6
          B B Height 32.7
          Chainstay Length 43.5
          Eff Seat Tube Angle 74.5°
          Eff Top Tube 60.5
          Frame Reach 45
          Frame Size Letter ML
          Frame Stack 59
          Head Angle 67.5°
          Head Tube Length 9
          Offset 4.3
          Seat Tube 44
          Seat Tube Angle 71.0°
          Standover 77.2
          Trail 10.9
          Wheelbase 115.3
          Wheel Size 29"
          B B Drop 4.6
          B B Height 32.7
          Chainstay Length 43.5
          Eff Seat Tube Angle 74.5°
          Eff Top Tube 62.2
          Frame Reach 46.5
          Frame Size Letter L
          Frame Stack 59.9
          Head Angle 67.5°
          Head Tube Length 10
          Offset 4.3
          Seat Tube 46
          Seat Tube Angle 71.5°
          Standover 77.2
          Trail 10.9
          Wheelbase 117.2
          Wheel Size 29"
          B B Drop 4.6
          B B Height 32.7
          Chainstay Length 43.5
          Eff Seat Tube Angle 74.5°
          Eff Top Tube 66.3
          Frame Reach 50
          Frame Size Letter XL
          Frame Stack 62.2
          Head Angle 67.5°
          Head Tube Length 12.5
          Offset 4.3
          Seat Tube 52.5
          Seat Tube Angle 71.5°
          Standover 77.2
          Trail 10.9
          Wheelbase 121.7
          Wheel Size 29"
