Trek supercaliber sl 9.7 gx axs t-type gen 2

179.00
999.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews
          • You get a 110mm fork and 80mm of IsoStrut rear suspension that partners with slacker, capable geometry for handling the roots and rocks of modern XC courses
          • You dont have to compromise stiffness for weight savings thanks to the SL OCLV Mountain Carbon frame thats intensely light, stiff, and responsive
          • IsoStrut gives you tunable, damped suspension without missing out on efficiency for hammering up climbs at top speed
          • Pivotless seat stays save on weight and actively bend to help soak up trail chatter
          • SRAMs wireless electronic GX AXS transmission is built tough and keeps shifting precise, even under load

          Nothing else like it

          Supercaliber’s unique frame design ditches traditional suspension hardware so there’s less weight, less maintenance, and less lateral flex. IsoStrut connects the mainframe to the pivot-less seat stays to offer about 80mm of rear wheel travel. This design offers a unique blend of efficiency, traction, and fatigue-fighting compliance that keeps racers fresh and in control.

          IsoStrut

          IsoStrut integrated suspension gives you just enough travel to stay in control. Its fully tuneable like a standard rear shock, but without the weight penalty of a full suspension bike.

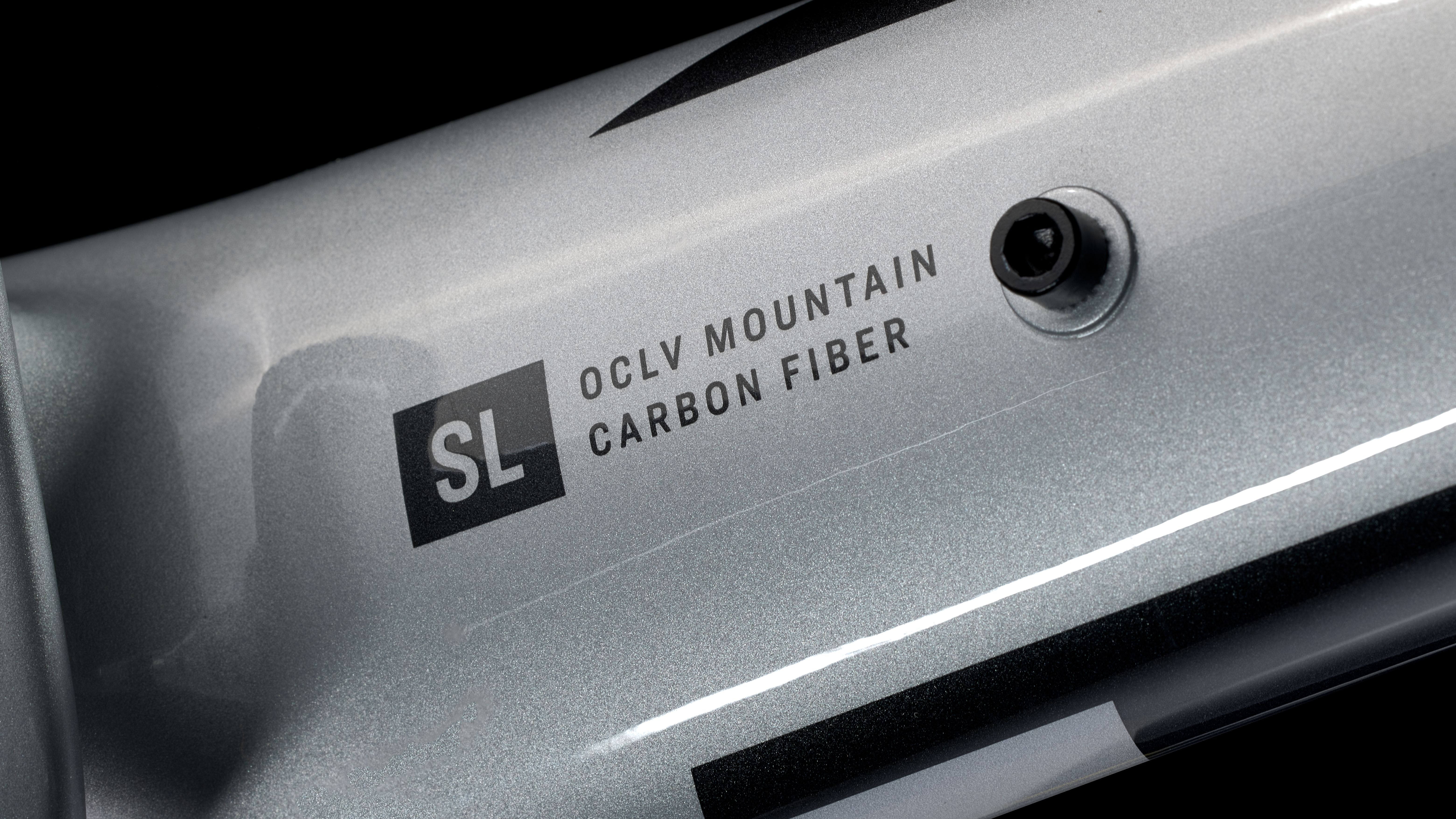

          SL OCLV Mountain Carbon

          Supercaliber SL is a lightweight OCLV Carbon frame. It features a lightweight carbon layup that doesnt compromise stiffness for weight, plus it featuers internal guides that make cable routing a breeze.

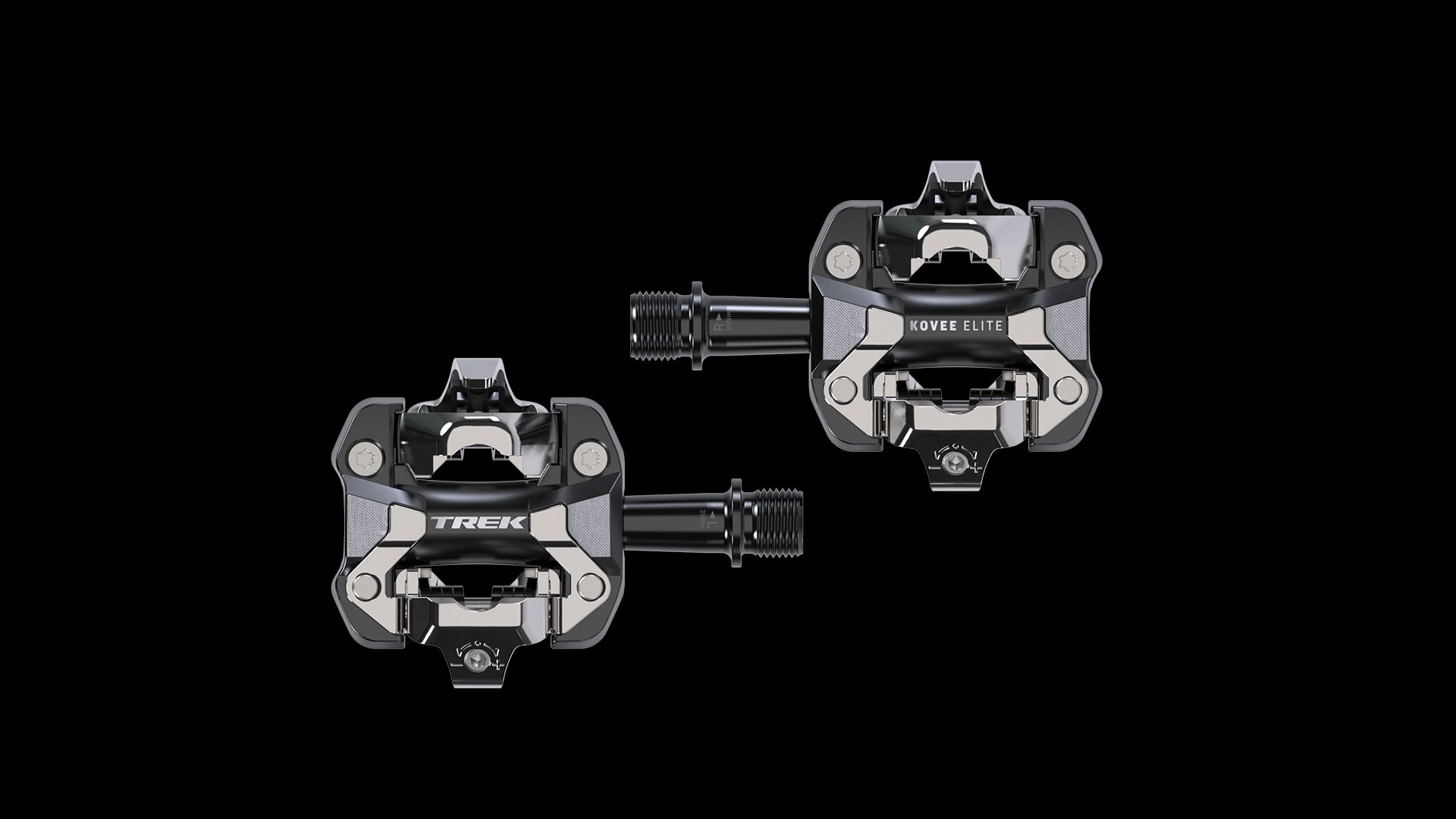

          You almost forgot your pedals

          This bike doesn’t come with pedals because youll have a better ride if you choose your own. See the pedal guide to find the best pedals for your riding style. Want pedals built for the race? We recommend clipless MTB pedals for control & efficiency.


          Frame SL OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel

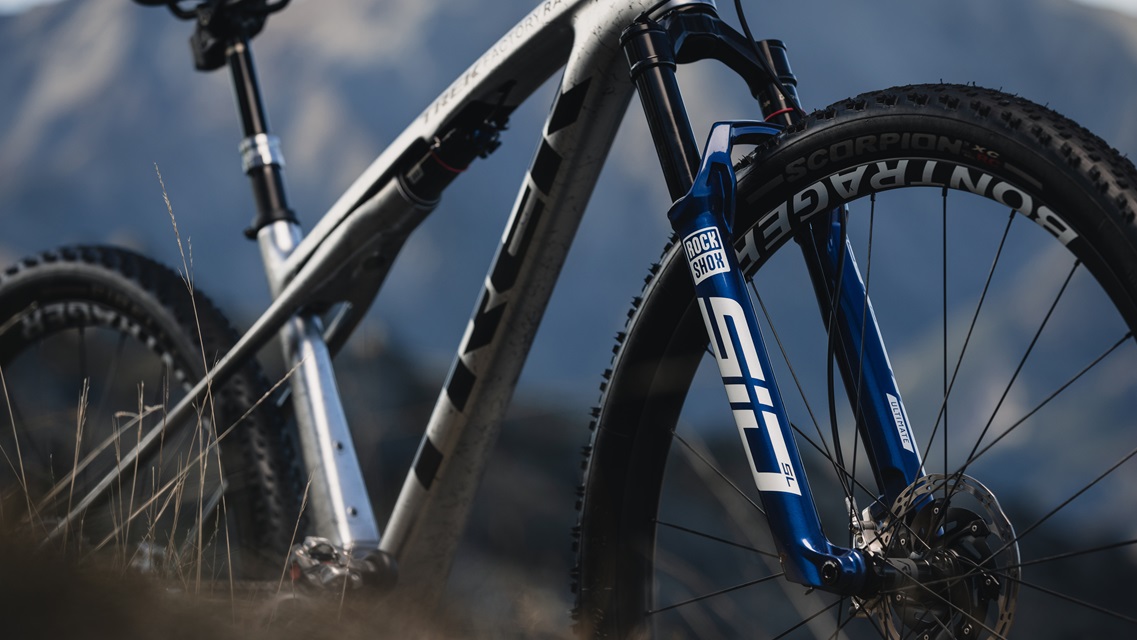

          Fork RockShox SID, DebonAir spring, Rush RL damper, remote lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 110mm travel

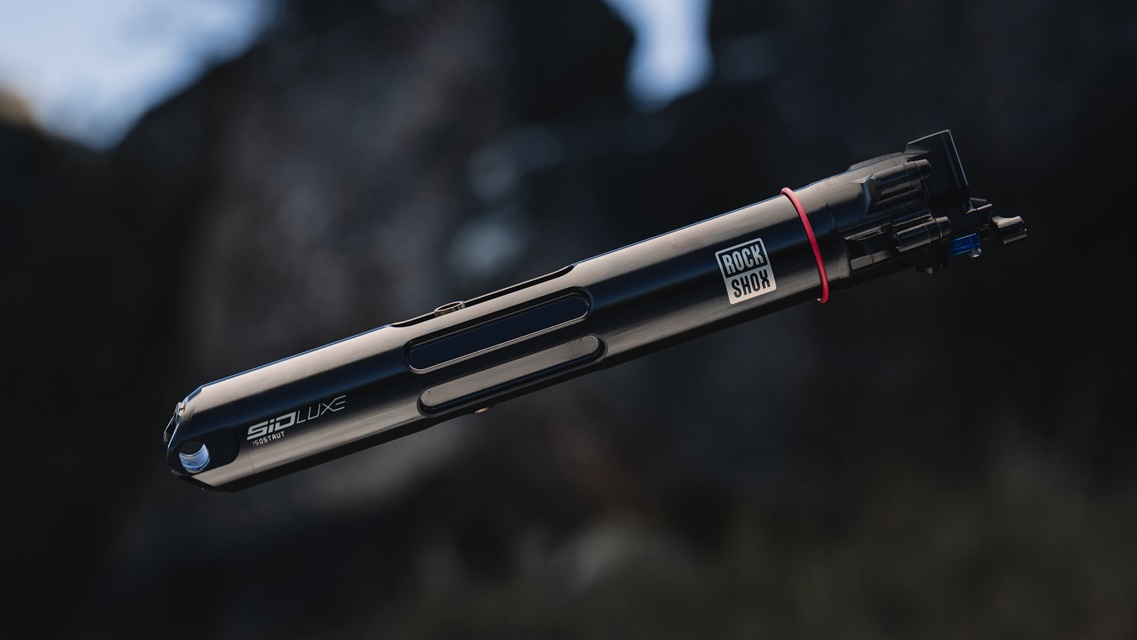

          Shock Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
          Wheel Front Bontrager Kovee Comp 25, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29
          Wheel Rear Bontrager Kovee Comp 25, Tubeless Ready, Rapid Drive 108, Boost148, 12mm thru axle, 29
          Tire Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual compound, aramid bead, 220 tpi, 29x2.40
          Tire Part Bontrager TLR sealant, 6oz
          Rim Strip Bontrager TLR
          Skewer Rear Bontrager Switch thru axle, removable lever
          Shifter SRAM AXS POD
          Rear Derailleur SRAM GX Eagle AXS, T-Type
          Crank SRAM GX Eagle, DUB, T-Type, 34T, 55mm chainline, 170mm length
          Bottom Bracket SRAM DUB, 92mm, PressFit
          Cassette SRAM Eagle XS-1275, T-Type, 10-52, 12 speed
          Chain SRAM GX Eagle, T-Type, 12 speed
          Brake SRAM Level Bronze 4-piston hydraulic disc // SRAM Level Bronze 4-piston hydraulic disc
          Brake Rotor SRAM CenterLine, 6-bolt, round edge, 160mm // SRAM CenterLine, 6-bolt, round edge, 180mm
          Saddle Verse Short Elite, hollow magnesium rails, 145mm width
          Seatpost Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length
          Seat Collar Bolt-on, 36.4mm
          Handlebar Bontrager Kovee Pro, OCLV Carbon, 35mm, 5mm rise, 720mm width
          Stem Bontrager Elite, 35mm, 13-degree, 60mm length
          Headset FSA IS-2, 1-1/8 top, 1.5 bottom
          Battery SRAM eTap battery pack (with charger)

          Geometry Chart

          B B Drop 4.6
          B B Height 32.7
          Chainstay Length 43.5
          Eff Seat Tube Angle 74.5°
          Eff Top Tube 57.1
          Frame Reach 41
          Frame Size Letter S
          Frame Stack 59
          Head Angle 67.5°
          Head Tube Length 9
          Offset 4.3
          Seat Tube 39.5
          Seat Tube Angle 70.5°
          Standover 76
          Trail 10.9
          Wheelbase 111.3
          Wheel Size 29"
          B B Drop 4.6
          B B Height 32.7
          Chainstay Length 43.5
          Eff Seat Tube Angle 74.5°
          Eff Top Tube 59.2
          Frame Reach 43.5
          Frame Size Letter M
          Frame Stack 59
          Head Angle 67.5°
          Head Tube Length 9
          Offset 4.3
          Seat Tube 42
          Seat Tube Angle 71.0°
          Standover 77.2
          Trail 10.9
          Wheelbase 113.8
          Wheel Size 29"
          B B Drop 4.6
          B B Height 32.7
          Chainstay Length 43.5
          Eff Seat Tube Angle 74.5°
          Eff Top Tube 60.5
          Frame Reach 45
          Frame Size Letter ML
          Frame Stack 59
          Head Angle 67.5°
          Head Tube Length 9
          Offset 4.3
          Seat Tube 44
          Seat Tube Angle 71.0°
          Standover 77.2
          Trail 10.9
          Wheelbase 115.3
          Wheel Size 29"
          B B Drop 4.6
          B B Height 32.7
          Chainstay Length 43.5
          Eff Seat Tube Angle 74.5°
          Eff Top Tube 62.2
          Frame Reach 46.5
          Frame Size Letter L
          Frame Stack 59.9
          Head Angle 67.5°
          Head Tube Length 10
          Offset 4.3
          Seat Tube 46
          Seat Tube Angle 71.5°
          Standover 77.2
          Trail 10.9
          Wheelbase 117.2
          Wheel Size 29"
          B B Drop 4.6
          B B Height 32.7
          Chainstay Length 43.5
          Eff Seat Tube Angle 74.5°
          Eff Top Tube 66.3
          Frame Reach 50
          Frame Size Letter XL
          Frame Stack 62.2
          Head Angle 67.5°
          Head Tube Length 12.5
          Offset 4.3
          Seat Tube 52.5
          Seat Tube Angle 71.5°
          Standover 77.2
          Trail 10.9
          Wheelbase 121.7
          Wheel Size 29"
