Trek rail 9.8 gx axs t-type gen 4

179.00
999.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews
          • Rail Gen 4s integrated System Controller lets you see your assist mode and battery level without getting in the way while the Mini Remote makes it easy to change modes or use Walk Assist
          • Its clean cockpit is minimalist and sleek, and smart system makes it easy to add a display if you want more data
          • Intelligent eMTB and Tour+ modes automatically adjust the assist based on your input to give you just the right amount of power for your ride
          • The frame is extra stout with a 34.9mm seat tube to accommodate more robust dropper posts, and an oversized head tube that works with burly e-MTB-optimized forks for less flex and more precise steering
          • Treks Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools, and lets you mount a water bottle cage

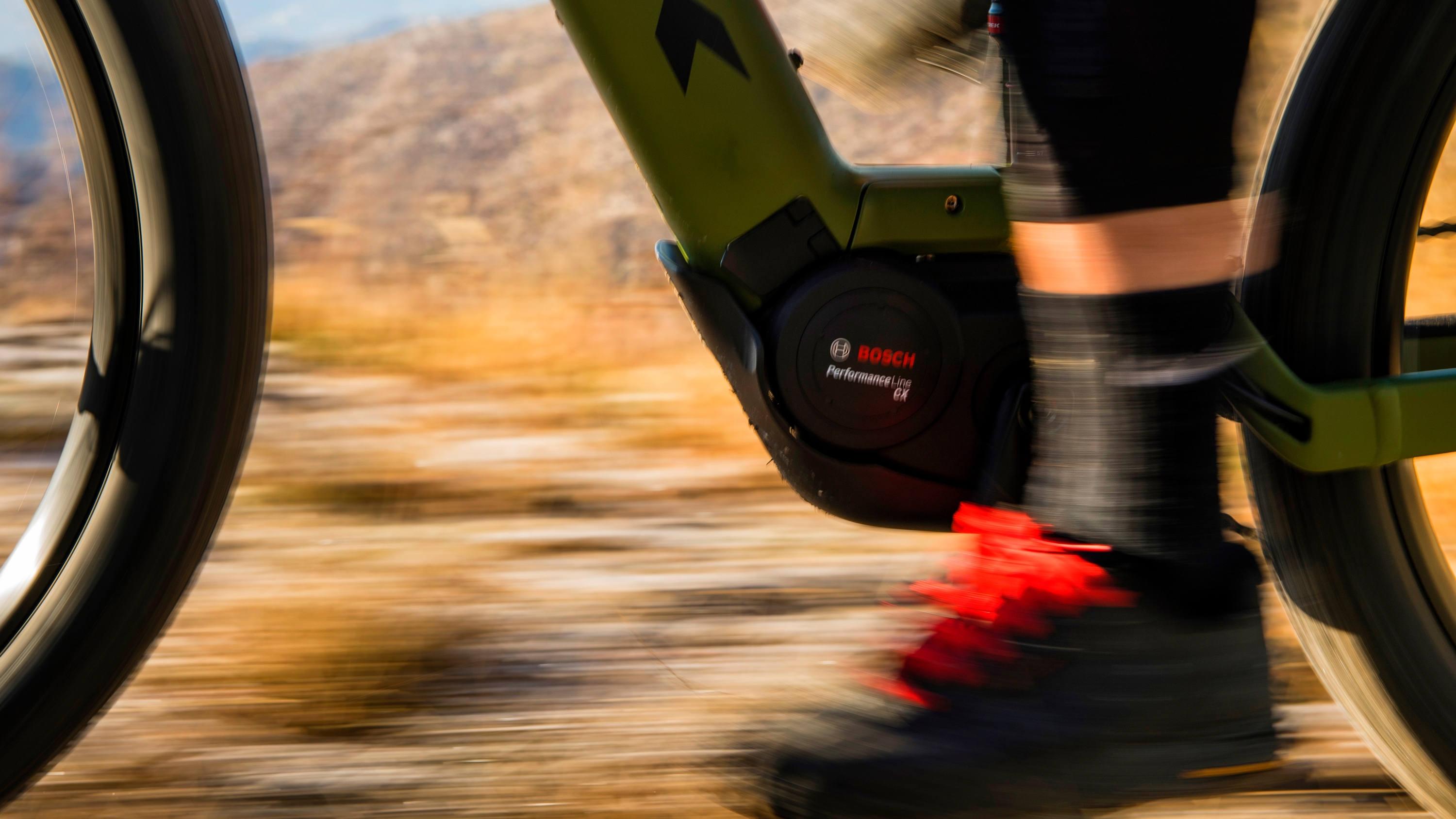

          Bosch Performance Line CX motor

          Bosch Performance Line CX sets the standard for eMTB performance with up to 85Nm of torque and an intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

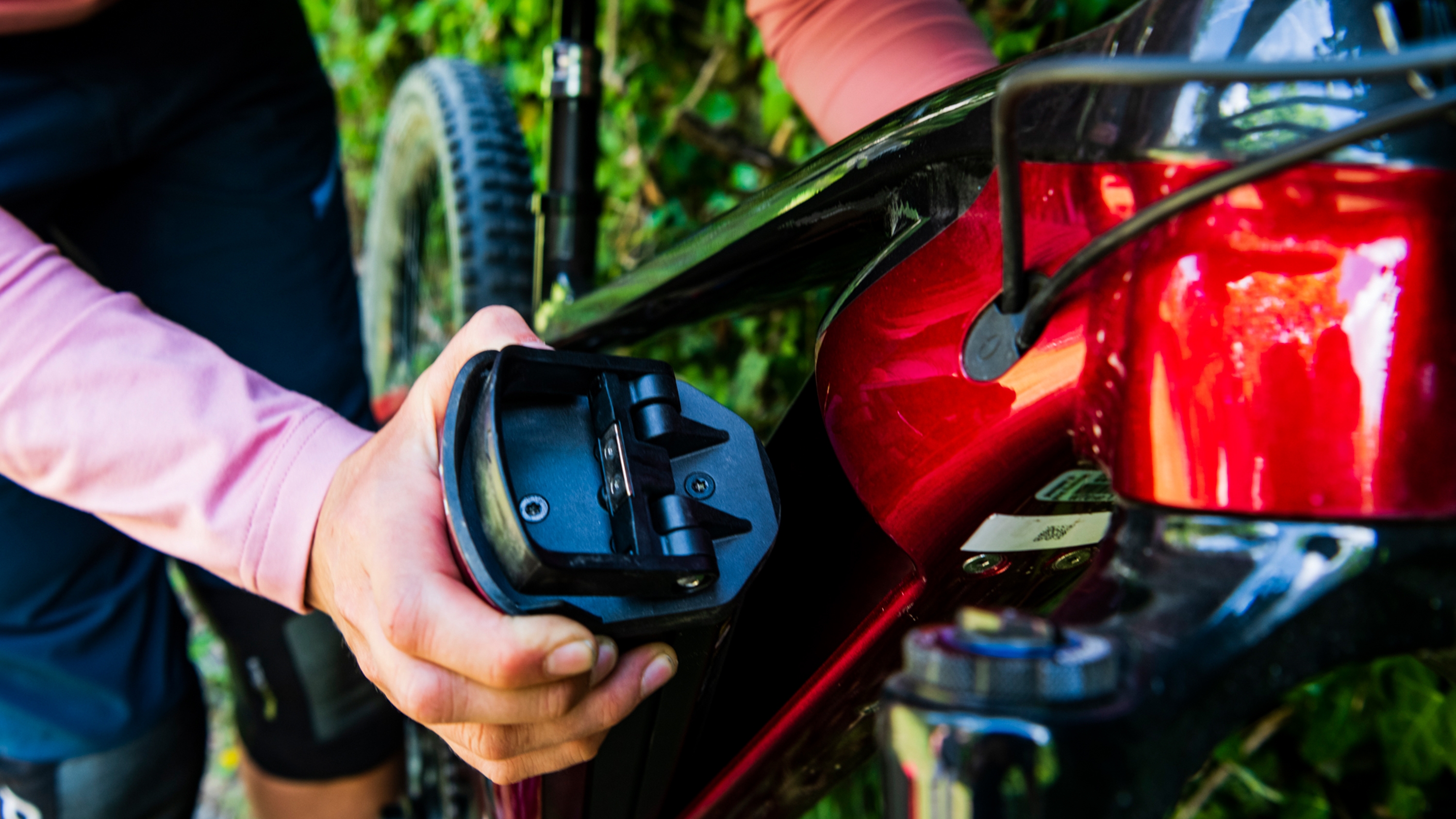

          Removable Integrated Battery

          RIB is a one-piece battery and cover with a built-in handle that can easily be removed and re-installed in the frame with no tools and no hassle. It’s the most convenient way to remove your battery for transport, security, or just easier charging.

          Bosch Performance Line CX motor

          Bosch Performance Line CX sets the standard for eMTB performance with up to 85Nm of torque and an intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

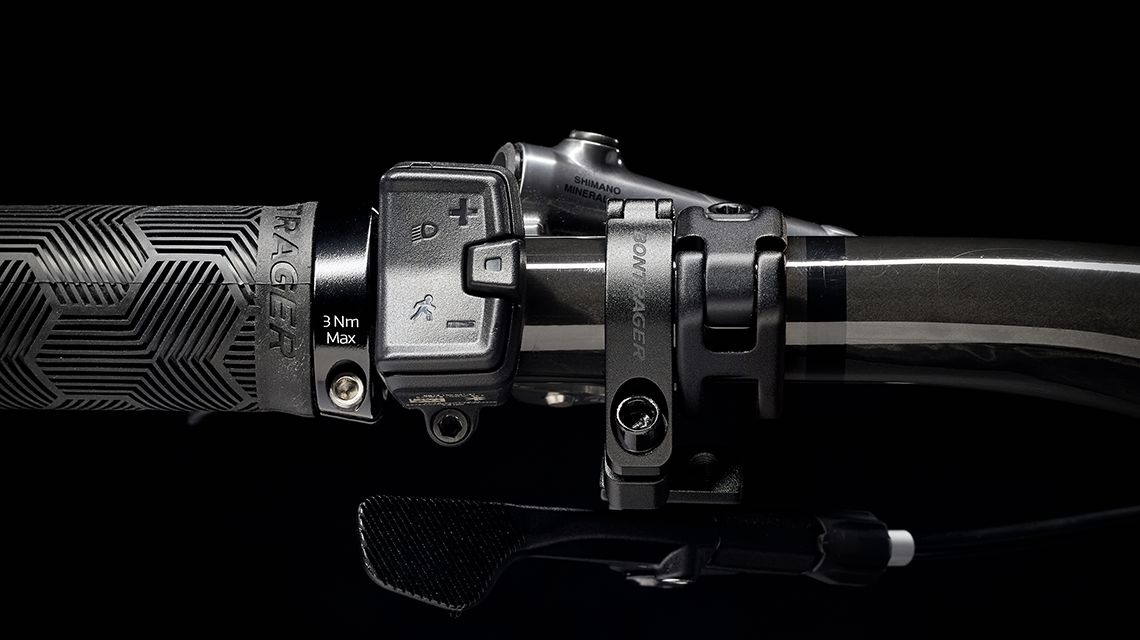

          Bosch Mini Remote

          The compact, ergonomic Mini Remote lets you easily change assist level, activate Walk mode, or turn on optional lights, all without moving your hand off the handlebar. Plus, its wireless and connects with your System Controller via Bluetooth

          Bosch System Controller

          The System Controller gives you a quick overview of your assist mode and battery level without distracting you from the ride. Its integrated into the top tube so its out of the way but still easy to see with LED indicators. It also connects to the eBike Flow app via Bluetooth for accessing ride stats and performing system updates.

          Active Braking Pivot

          Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.


          Frame OCLV Mountain Carbon main frame, 1.8 lower head tube, Bosch System Controller compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
          Fork RockShox ZEB Select+, DebonAir spring, Charger 3 RC2 damper, 1.8 oversized tapered steerer, eMTB optimized crown, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel
          Shock RockShox Super Deluxe Select+ RT, 230mm x 57.5mm
          Wheel Front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29 /
          Wheel Rear Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29
          Tire Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50 // Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50
          Tire Part Bontrager TLR sealant, 6oz
          Rim Strip Bontrager TLR
          Skewer Rear Bontrager Switch thru axle, removable lever
          Shifter SRAM AXS POD
          Rear Derailleur SRAM GX Eagle AXS, T-Type
          Crank SRAM GX, 160mm length
          Cassette SRAM Eagle XS-1275, T-Type,10-52, 12 speed
          Chain SRAM GX Eagle, T-Type, 12 speed
          Chainring SRAM XX T-Type, 34T, steel
          Brake SRAM CODE Bronze 4-piston hydraulic disc // SRAM CODE Bronze 4-piston hydraulic disc
          Brake Rotor SRAM 6-bolt, 200mm // SRAM HS2, 6-bolt, 220mm
          Pedal VP-536 nylon platform
          Saddle Bontrager Arvada, austenite rails, 138mm width
          Seatpost Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length
          Handlebar Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
          Stem Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 45mm length
          Headset Knock Block Integrated, 67-deree radius, cartridge bearing, 1-1/8 top, 1.8 bottom
          Grips Bontrager XR Trail Elite, nylon lock-on
          Battery Bosch PowerTube 625Wh, smart system
          Controller Bosch System Controller BRC3100, smart system
          Motor Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
          Charger Bosch standard 4A, 110V, smart system

          Geometry Chart

          B B Drop 2.7
          B B Height 34.6
          Chainstay Length 44.7
          Eff Seat Tube Angle 77.1°
          Eff Top Tube 57.9
          Frame Reach 43.6
          Frame Size Letter S
          Frame Size Number 15.5"
          Frame Stack 62.5
          Head Angle 64.6°
          Head Tube Length 10.5
          Offset 4.3
          Position High
          Seat Tube 41
          Seat Tube Angle 71.2°
          Standover 76.1
          Trail 13
          Wheelbase 121.3
          Wheel Size 29"
          B B Drop 2.7
          B B Height 34.6
          Chainstay Length 44.7
          Eff Seat Tube Angle 77.1°
          Eff Top Tube 60
          Frame Reach 45.6
          Frame Size Letter M
          Frame Size Number 17.5"
          Frame Stack 62.9
          Head Angle 64.6°
          Head Tube Length 11
          Offset 4.3
          Position High
          Seat Tube 42
          Seat Tube Angle 71.2°
          Standover 77.3
          Trail 13
          Wheelbase 123.6
          Wheel Size 29"
          B B Drop 2.7
          B B Height 34.6
          Chainstay Length 44.7
          Eff Seat Tube Angle 77.1°
          Eff Top Tube 63.8
          Frame Reach 49.1
          Frame Size Letter L
          Frame Size Number 19.5"
          Frame Stack 64.3
          Head Angle 64.6°
          Head Tube Length 12.5
          Offset 4.3
          Position High
          Seat Tube 45
          Seat Tube Angle 71.2°
          Standover 77
          Trail 13
          Wheelbase 127.7
          Wheel Size 29"
          B B Drop 2.7
          B B Height 34.6
          Chainstay Length 44.7
          Eff Seat Tube Angle 77.1°
          Eff Top Tube 67.1
          Frame Reach 52.1
          Frame Size Letter XL
          Frame Size Number 21.5"
          Frame Stack 65.6
          Head Angle 64.6°
          Head Tube Length 14
          Offset 4.3
          Position High
          Seat Tube 50
          Seat Tube Angle 71.2°
          Standover 76.8
          Trail 13
          Wheelbase 131.3
          Wheel Size 29"
