          • Rail+ delivers adventure with plenty of travel and power for getting after epic rides that take you peak to peak or chasing endless enduro laps
          • The powerful Bosch Performance CX system goes full gas up steep climbs and keeps you cool for the descents
          • You can tweak your geometry and suspension leverage rate for how you ride, and add in adjustable angle headset cups (sold separately) for even more adjustability
          • The massive 800Wh RIB 2.0 battery supports you for big miles and can be easily removed for travel or storage
          • Its compatible with the Bosch PowerMore booster battery for going even further on epic adventures

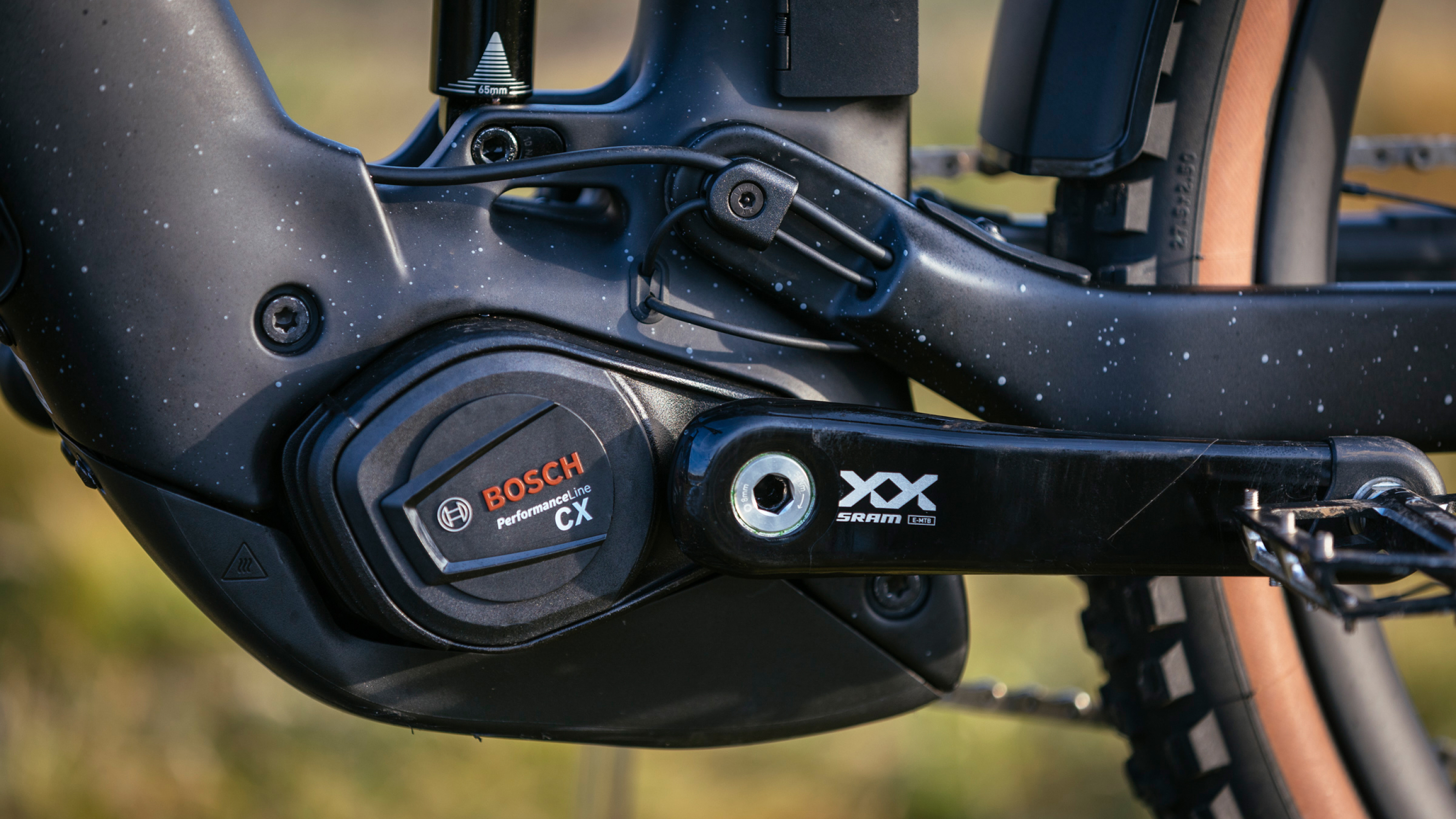

          Bosch Performance Line CX motor

          Bosch Performance Line CX sets the standard for eMTB performance with up to 85Nm of torque and an intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

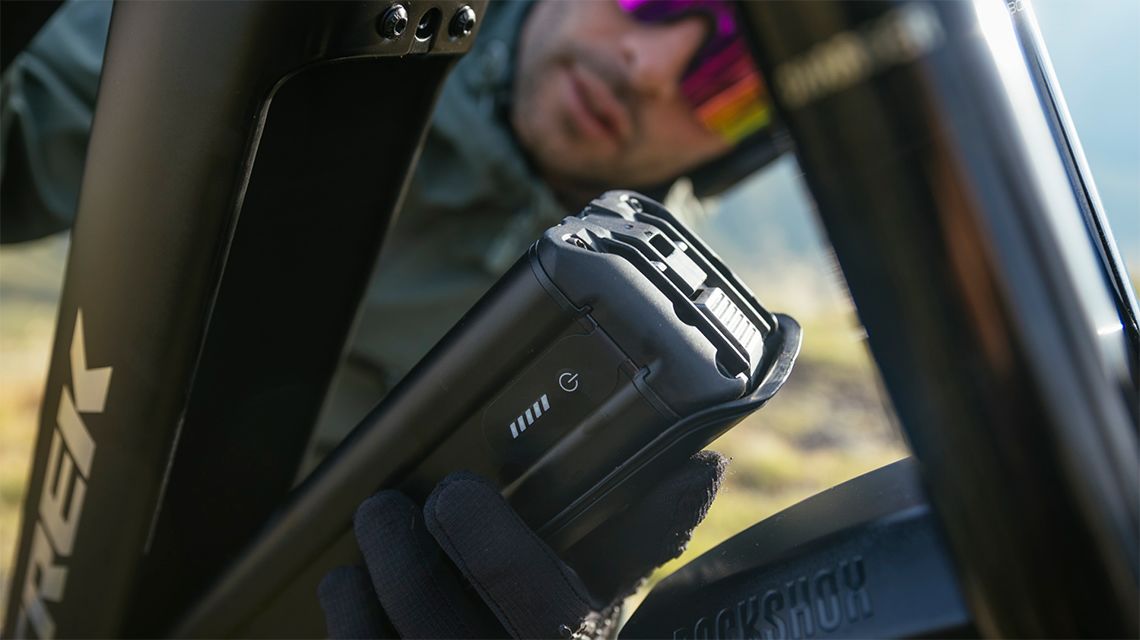

          New RIB 2.0

          Removable Integrated Battery (RIB 2.0) makes it easy to remove your battery for more convenient charging or traveling, and you dont have to worry about dropping it thanks to a secondary safety catch.

          Mixed wheel size

          You get a 29" front wheel for monster truckin over stuff, with a smaller 27.5" wheel out back for getting rowdy.

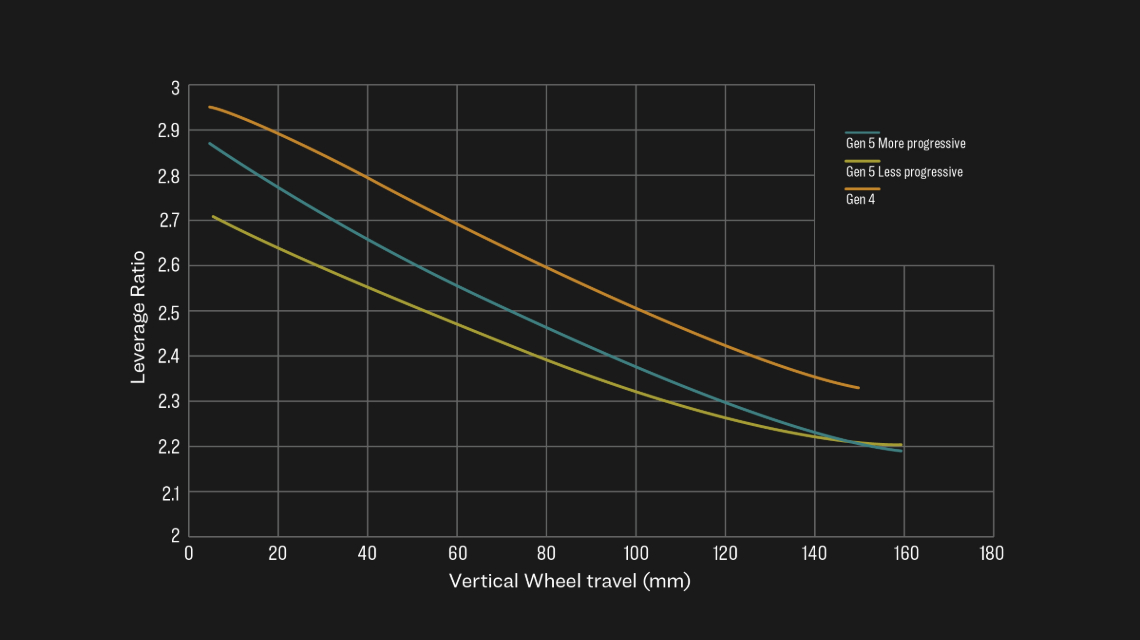

          Adjust the suss for full send

          Adjust leverage rate with just a flip of a chip. Ride it in the Less progressive setting for a plusher feel perfect for rugged trails with square-edge bumps. Flip it to More progressive when youre hitting big features and don’t want to bottom-out, or when you want to run a coil shock.

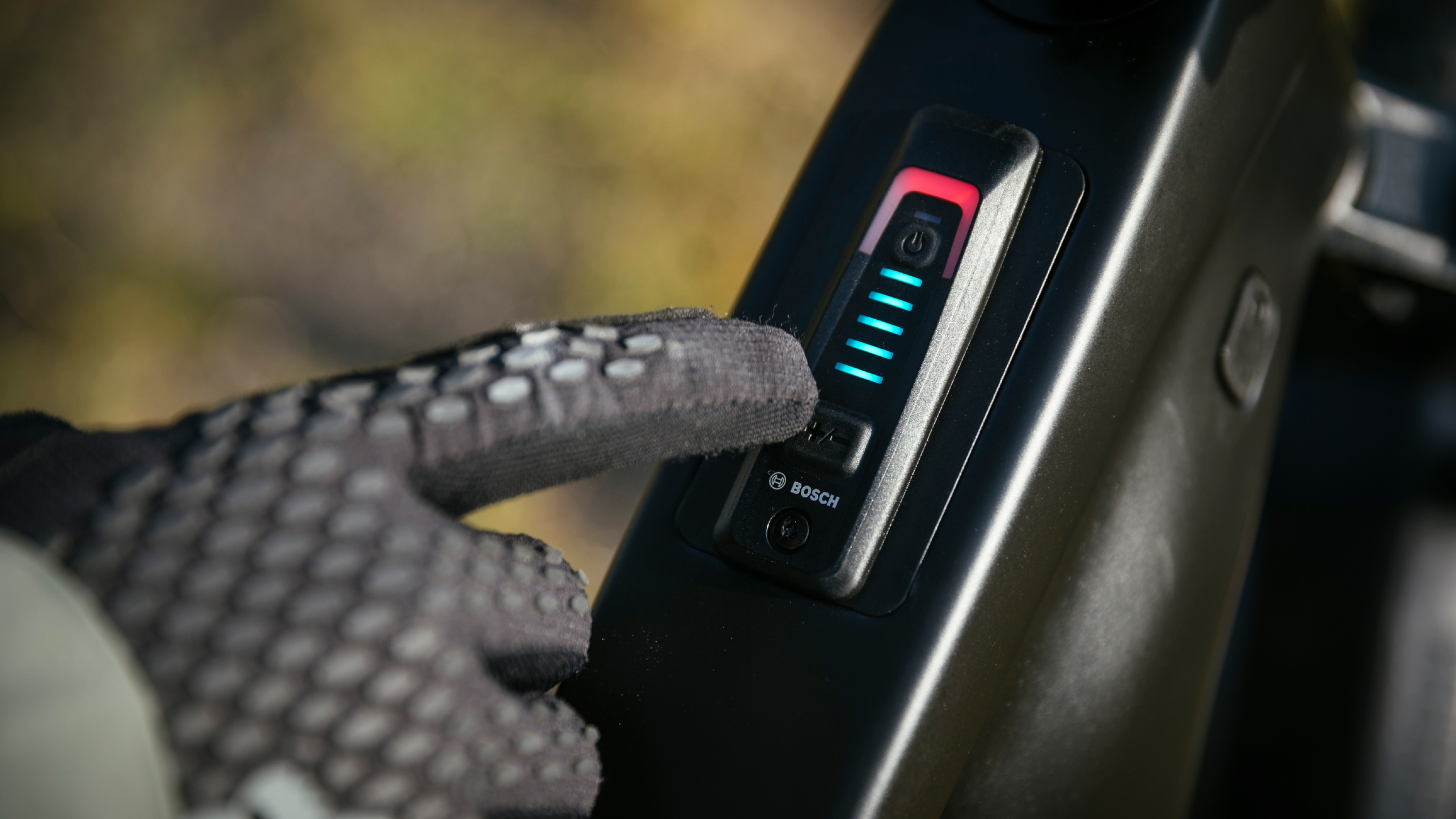

          Bosch System Controller

          The System Controller gives you a quick overview of your assist mode and battery level without distracting you from the ride. Its integrated into the top tube so its out of the way but still easy to see with LED indicators. It also connects to the eBike Flow app via Bluetooth for accessing ride stats and performing system updates.

          Active Braking Pivot

          Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.


          Frame Alpha Platinum Aluminum, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel
          Fork RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44mm offset, Boost110, Maxle Stealth, 160mm travel
          Shock RockShox Super Deluxe Select+ RT, 205mm x 65mm
          Wheel Front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5
          Wheel Rear Bontrager Line Comp 30, High Strength 6000 Series Aluminum rim, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 27.5
          Tire Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50
          Tire Part Bontrager TLR sealant, 6oz
          Skewer Rear Bontrager Switch thru axle, removable lever
          Shifter Shimano SLX M7100, 12 speed
          Rear Derailleur Shimano XT M8100, long cage
          Crank Arm E*thirteen E*spec Plus, 160mm length
          Cassette Shimano Deore M6100, 10-51, 12 speed
          Chain Shimano SLX M7100, 12 speed
          Brake SRAM DB 8 4-piston hydraulic disc // SRAM DB 8 4-piston hydraulic disc
          Brake Rotor SRAM CenterLine, 6-bolt, round edge, 200mm
          Pedal VP-536 nylon platform
          Saddle Bontrager Verse P3, steel rails
          Seatpost Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length
          Handlebar Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
          Stem Bontrager Elite, 35mm, 0 degree, 45mm length
          Headset Integrated cartridge bearing, 1-1/8 top, 1.5 bottom, angle adjust cup compatible
          Grips Bontrager XR Trail Comp, nylon lock-on
          Controller Bosch System Controller BRC3100, smart system
          Motor Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
          Charger Bosch standard 4A, 110V, smart system

          Geometry Chart

          B B Drop 1.2
          B B Height 34.4
          Chainstay Length 44.6
          Eff Seat Tube Angle 77.9°
          Eff Top Tube 56.2
          Frame Reach 43.5
          Frame Size Letter S
          Frame Size Number 15.5"
          Frame Stack 59.8
          Head Angle 65.0°
          Head Tube Length 10
          Offset 4.3
          Position High
          Seat Tube 38
          Seat Tube Angle 75.3°
          Standover 76.7
          Trail 11.9
          Wheelbase 120.1
          Wheel Size 27.5"
          B B Drop 1.8
          B B Height 34.5
          Chainstay Length 44.6
          Eff Seat Tube Angle 77.7°
          Eff Top Tube 59.1
          Frame Reach 45.5
          Frame Size Letter M
          Frame Size Number 17.5"
          Frame Stack 63.1
          Head Angle 65.0°
          Head Tube Length 10
          Offset 4.3
          Position High
          Seat Tube 41
          Seat Tube Angle 75.3°
          Standover 78.4
          Trail 12.7
          Wheelbase 122.9
          Wheel Size 29"/27.5"
          B B Drop 1.8
          B B Height 34.5
          Chainstay Length 44.6
          Eff Seat Tube Angle 77.5°
          Eff Top Tube 63.9
          Frame Reach 49.5
          Frame Size Letter L
          Frame Size Number 19.5"
          Frame Stack 64.9
          Head Angle 65.0°
          Head Tube Length 12
          Offset 4.3
          Position High
          Seat Tube 43.5
          Seat Tube Angle 75.2°
          Standover 78.5
          Trail 12.7
          Wheelbase 127.7
          Wheel Size 29"/27.5"
          B B Drop 1.7
          B B Height 34.5
          Chainstay Length 44.6
          Eff Seat Tube Angle 77.4°
          Eff Top Tube 67
          Frame Reach 52
          Frame Size Letter XL
          Frame Size Number 21.5"
          Frame Stack 67.2
          Head Angle 64.9°
          Head Tube Length 14.5
          Offset 4.3
          Position High
          Seat Tube 47
          Seat Tube Angle 75.2°
          Standover 80.4
          Trail 12.7
          Wheelbase 131.3
          Wheel Size 29"/27.5"
