Trek marlin+ 6

179.00
999.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews
          • Its AUTO mode adaptive motor support recognizes speed reductions and adjusts assistance automatically
          • The 120mm suspension keeps your ride feeling smooth through bumps, roots, and rough stuff
          • Marlin+ is easy to use with simple controls and intuitive support, so you can focus on the ride ahead, not complicated remotes
          • Trail-savvy geometry keeps handling easy and confident from singletrack to city streets
          • Tons of rack and fender mounts let you customize your ride for the trail or taking on daily commutes

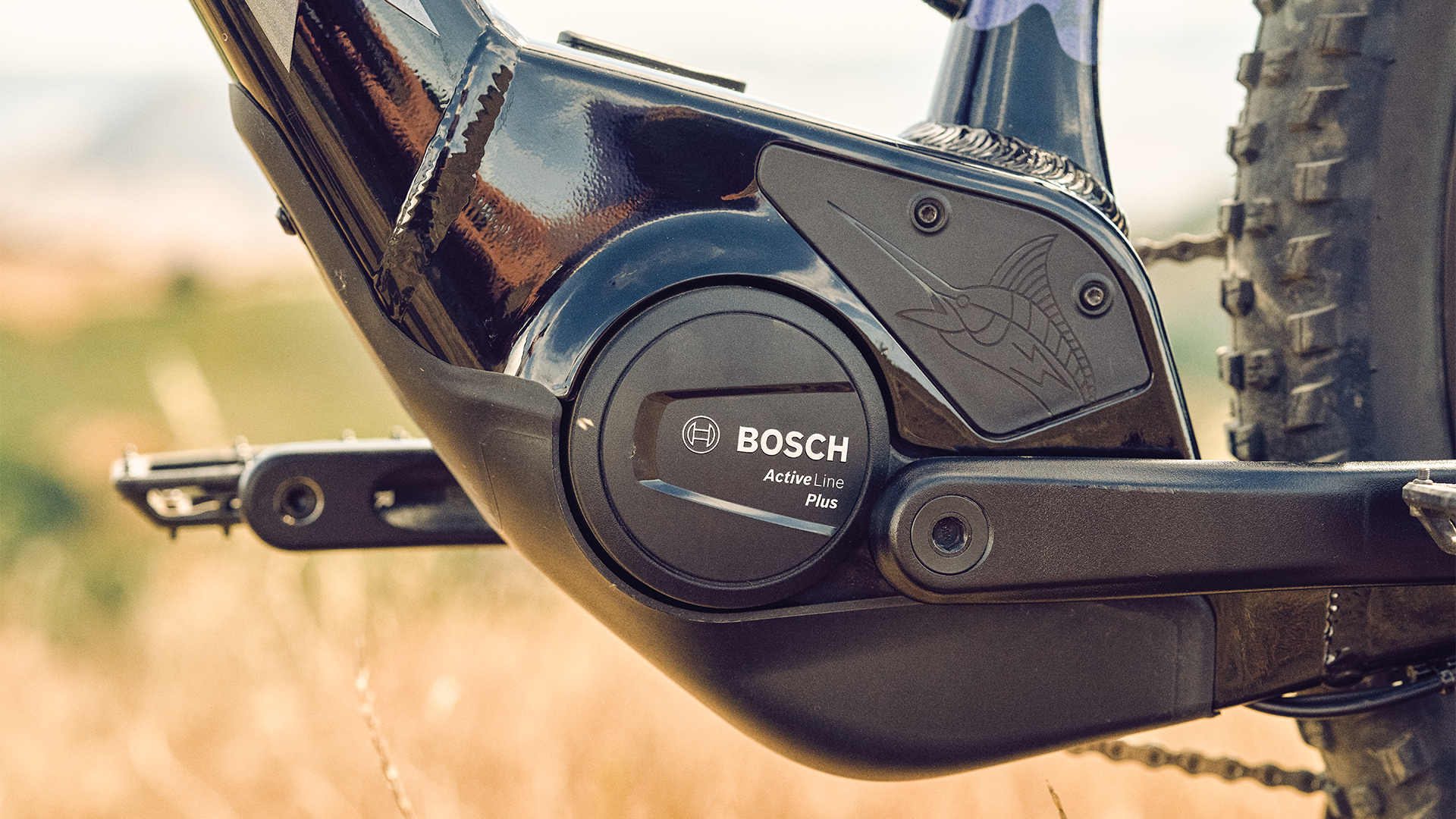

          Smooth, quiet support

          Bosch Active Line Plus mid-power motor doles out a smooth 50Nm of torque. Its controlled acceleration, low pedal resistance, and super quiet operation give you a natural-feeling, unobtrusive ride.

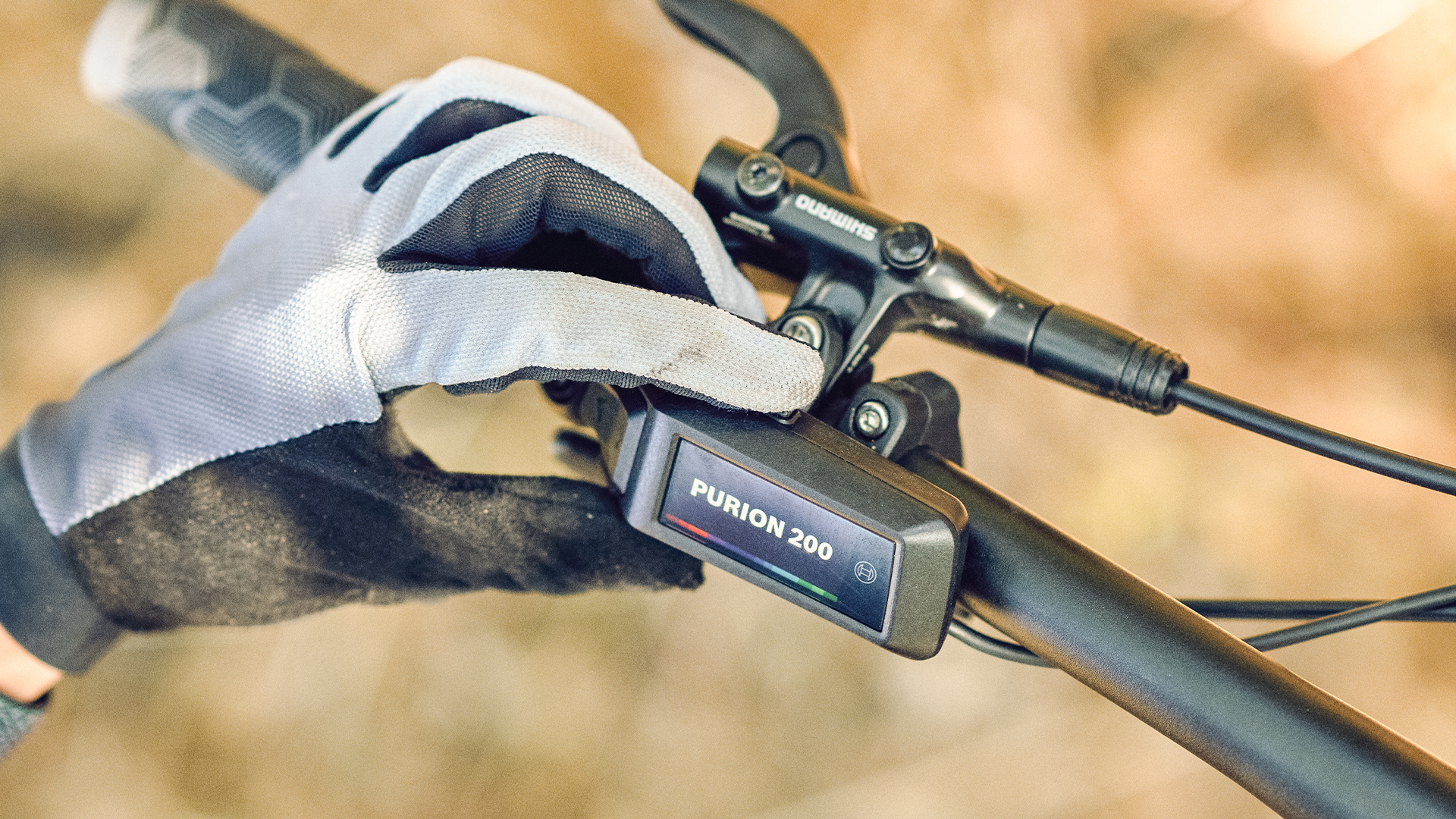

          Clean, simple controls

          The 2-in-1 remote and display provides all the information and control youll need in a compact, full-color handlebar controller with intuitive contols.

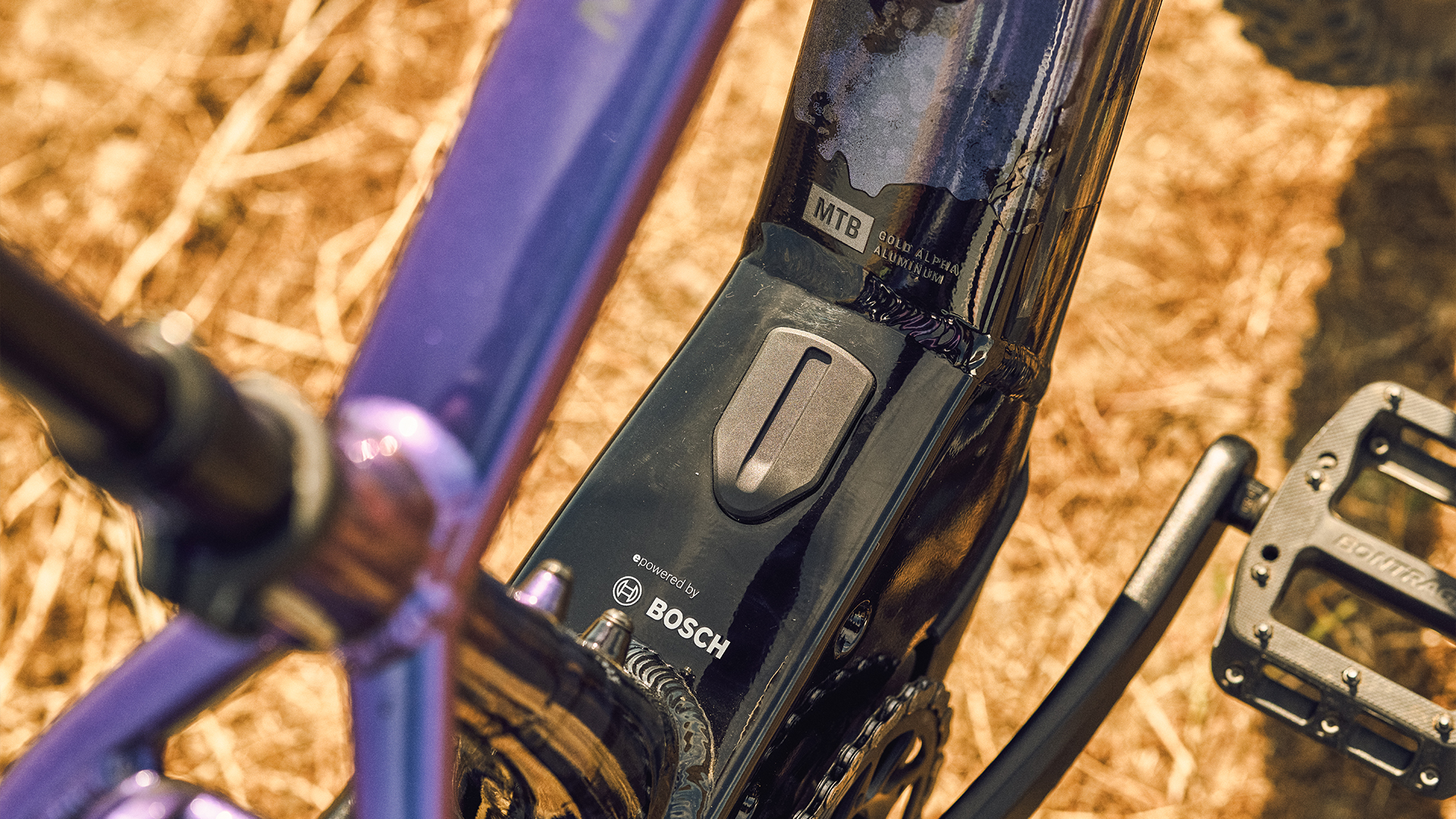

          System safety taken seriously

          Trek sets its e-bike safety standards high with UL certified e-systems, sophisticated battery management failsafe systems and battery cells from tier 1 suppliers.

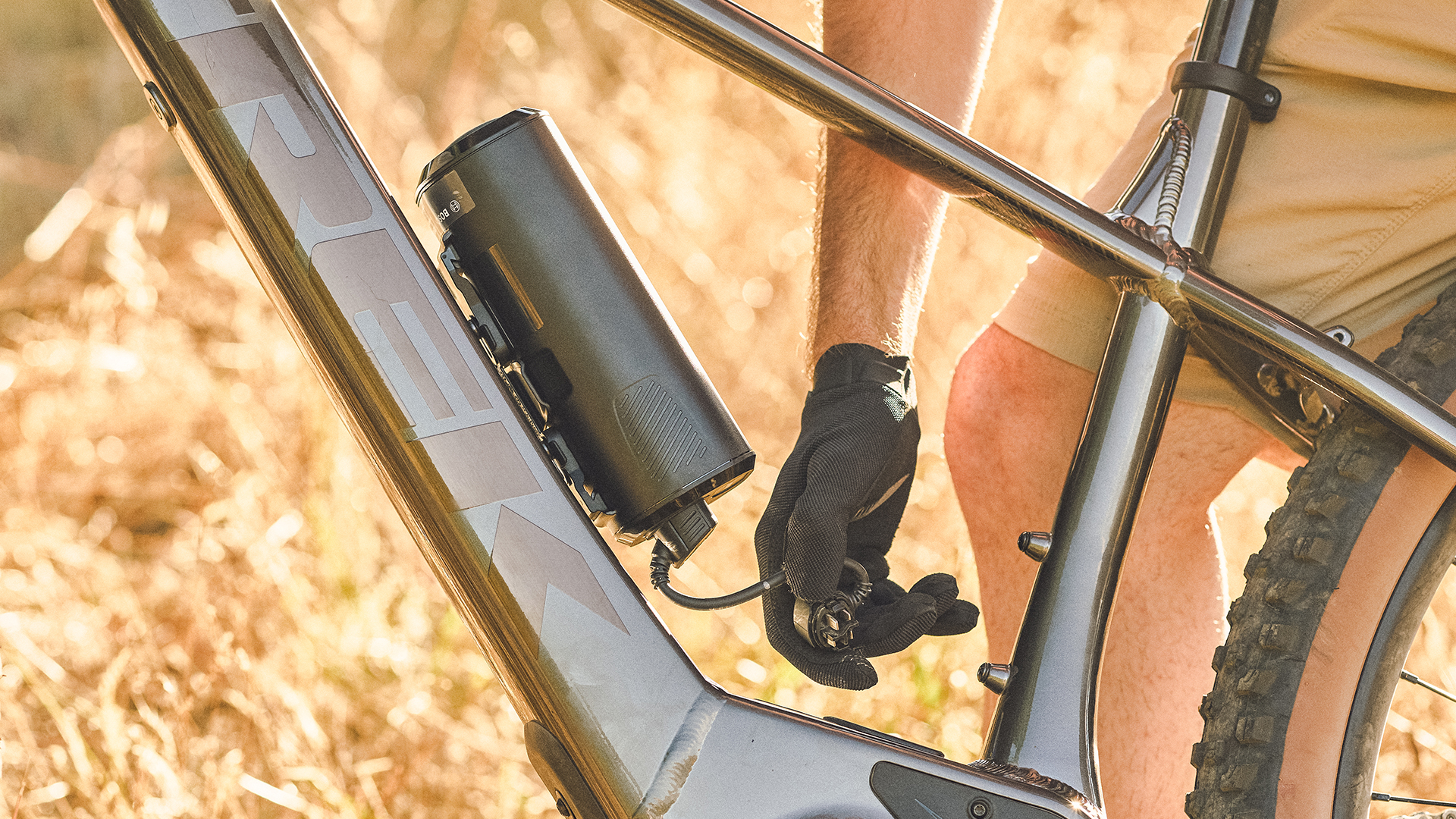

          Ride more and smile more with PowerMore

          Wanna ride farther? Add PowerMore to your Marlin+. This booster battery extends your range, so you get more supported ride time.

          Shimano CUES

          Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimano’s new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette, and chainrings.

          Shimano LINKGLIDE

          LINKGLIDE technology has been specifically engineered for incredible durability while still delivering smooth and decisive shifting – along with a great pedalling experience. Available exclusively on Shimano CUES drivetrains.


          Frame Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
          Fork SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 100mm travel
          Wheel Front /
          Tire Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40
          Hub Front Shimano TC500 alloy, centerlock, 110x15mm thru axle
          Hub Rear Shimano TC500 alloy, centerlock, 148x12mm thru axle
          Rim Bontrager Connection, double-wall, 32-hole, 20mm width, Presta valve
          Skewer Rear Bontrager Switch thru axle, removable lever
          Shifter Shimano U4000, 9 speed
          Rear Derailleur Shimano CUES U4000
          Crank FSA CK-220, 165mm length
          Cassette Shimano LINKGLIDE LG300, 11-46, 9 speed
          Chain Shimano LG500, 9/10/11 speed
          Chainring FSA, 32T, steel
          Brake Rotor Tektro, centerlock, 203mm
          Pedal VP-536 nylon platform
          Saddle Bontrager Verse P3, steel rails
          Seatpost Bontrager alloy, 31.6mm, 12mm offset, 330mm length
          Handlebar Bontrager alloy, 31.8mm, 15mm rise, 720mm width
          Stem Bontrager Comp, 31.8mm, 7 degree, 35mm length
          Headset Semi-integrated, loose ball bearing, 1-1/8 top, 1.5 bottom
          Grips Bontrager XR Endurance Comp, lock-on
          Battery Bosch CompactTube 400Wh
          Motor Bosch Active Line Plus
          Charger Bosch standard 2A, 110V, smart system

          Geometry Chart

          B B Drop 4.5
          B B Height 31.3
          Chainstay Length 47
          Eff Seat Tube Angle 74.0°
          Eff Top Tube 55.1
          Frame Reach 39
          Frame Size Letter XS
          Frame Stack 56.3
          Head Angle 66.5°
          Head Tube Length 9
          Offset 4.6
          Seat Tube 34
          Seat Tube Angle 73.8°
          Standover 67.8
          Trail 11
          Wheelbase 112.9
          Wheel Size 27.5"
          B B Drop 4.5
          B B Height 31.3
          Chainstay Length 47
          Eff Seat Tube Angle 74.0°
          Eff Top Tube 58.4
          Frame Reach 41.5
          Frame Size Letter S
          Frame Stack 59
          Head Angle 66.5°
          Head Tube Length 10
          Offset 4.6
          Seat Tube 37
          Seat Tube Angle 73.8°
          Standover 71
          Trail 11
          Wheelbase 116.6
          Wheel Size 27.5"
          B B Drop 6
          B B Height 31.8
          Chainstay Length 48.5
          Eff Seat Tube Angle 74.0°
          Eff Top Tube 62
          Frame Reach 44
          Frame Size Letter M
          Frame Stack 62.6
          Head Angle 66.5°
          Head Tube Length 10.5
          Offset 4.2
          Seat Tube 42
          Seat Tube Angle 73.8°
          Standover 76
          Trail 11.4
          Wheelbase 121.8
          Wheel Size 29"
          B B Drop 6
          B B Height 31.8
          Chainstay Length 48.5
          Eff Seat Tube Angle 74.0°
          Eff Top Tube 65.2
          Frame Reach 47
          Frame Size Letter L
          Frame Stack 63.5
          Head Angle 66.5°
          Head Tube Length 11.5
          Offset 4.2
          Seat Tube 45
          Seat Tube Angle 73.8°
          Standover 77.1
          Trail 11.4
          Wheelbase 125.1
          Wheel Size 29"
          B B Drop 6
          B B Height 31.8
          Chainstay Length 48.5
          Eff Seat Tube Angle 74.0°
          Eff Top Tube 68.2
          Frame Reach 49.5
          Frame Size Letter XL
          Frame Stack 65.3
          Head Angle 66.5°
          Head Tube Length 13.5
          Offset 4.2
          Seat Tube 50
          Seat Tube Angle 73.8°
          Standover 77.5
          Trail 11.4
          Wheelbase 128.4
          Wheel Size 29"
