Trek fuel exe 9.9 xx axs t-type

179.00
999.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews
          • You dont have to settle. You get the best carbon, components, and a motor that quietly blends in with the trail
          • SRAMs XX AXS wireless transmission gives you precise control of your shifts with a package thats light, rugged, and keeps shifts clean even under load
          • The RockShox suspension package comes equipped with AirWiz technology that makes dialing your suspension a breeze
          • Its tiny but mighty TQ motor is tuned for the trail, keeping things quiet so you can stay in the moment, and ramps up power with you for a natural ride feel
          • The integrated display, charging port, and controls are simple to use, sleek, and intuitive

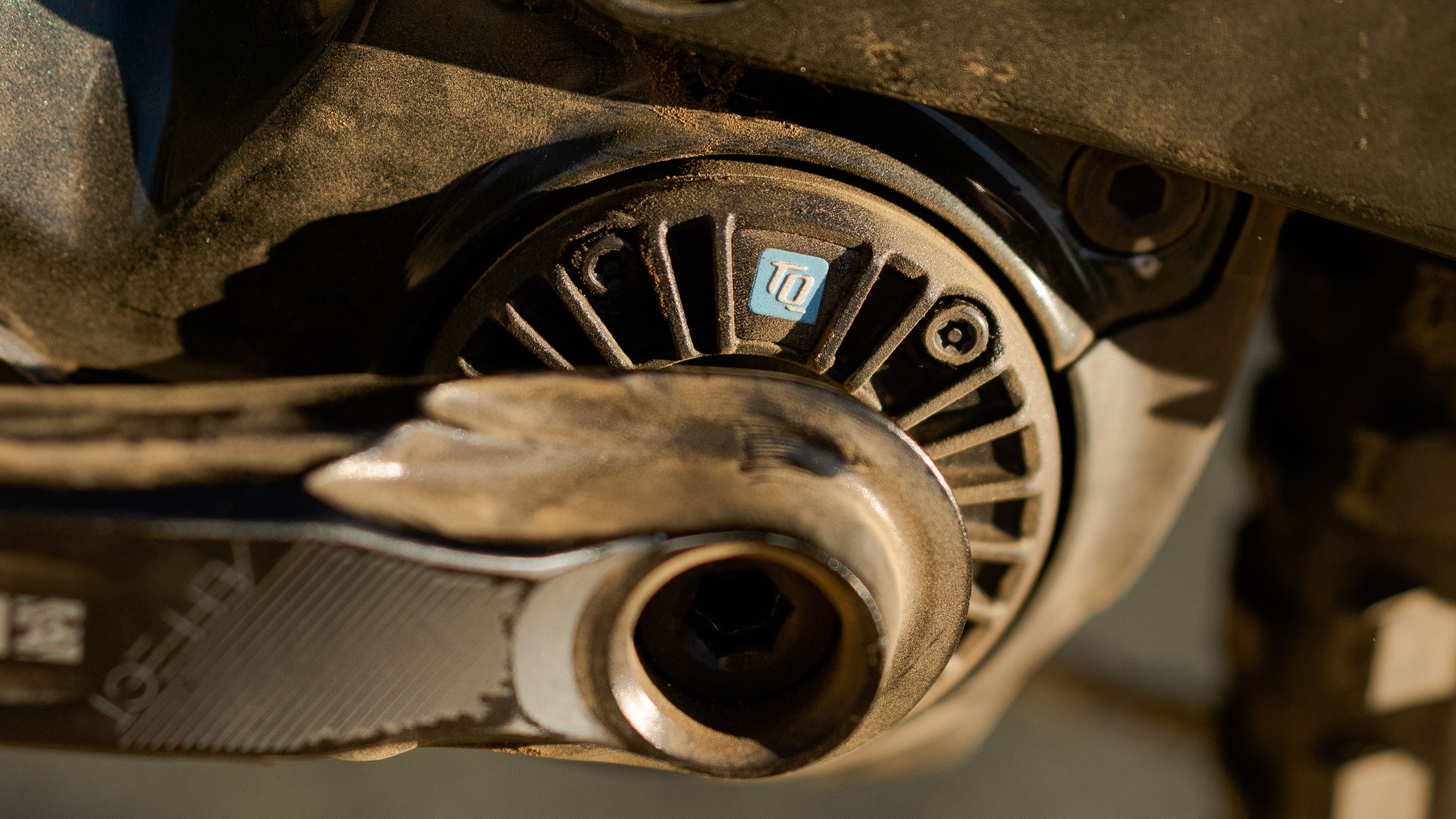

          TQ-HPR50 – small, quiet, mighty

          The TQ-HPR50 motor is super-efficient with an amazing power-to-weight ratio. Most motors use gears and belts that take up space and can make noise or break. The TQ-HPR50 uses a harmonic pin-ring drive transmission that’s small, ultra-quiet and unbelievably natural-feeling.

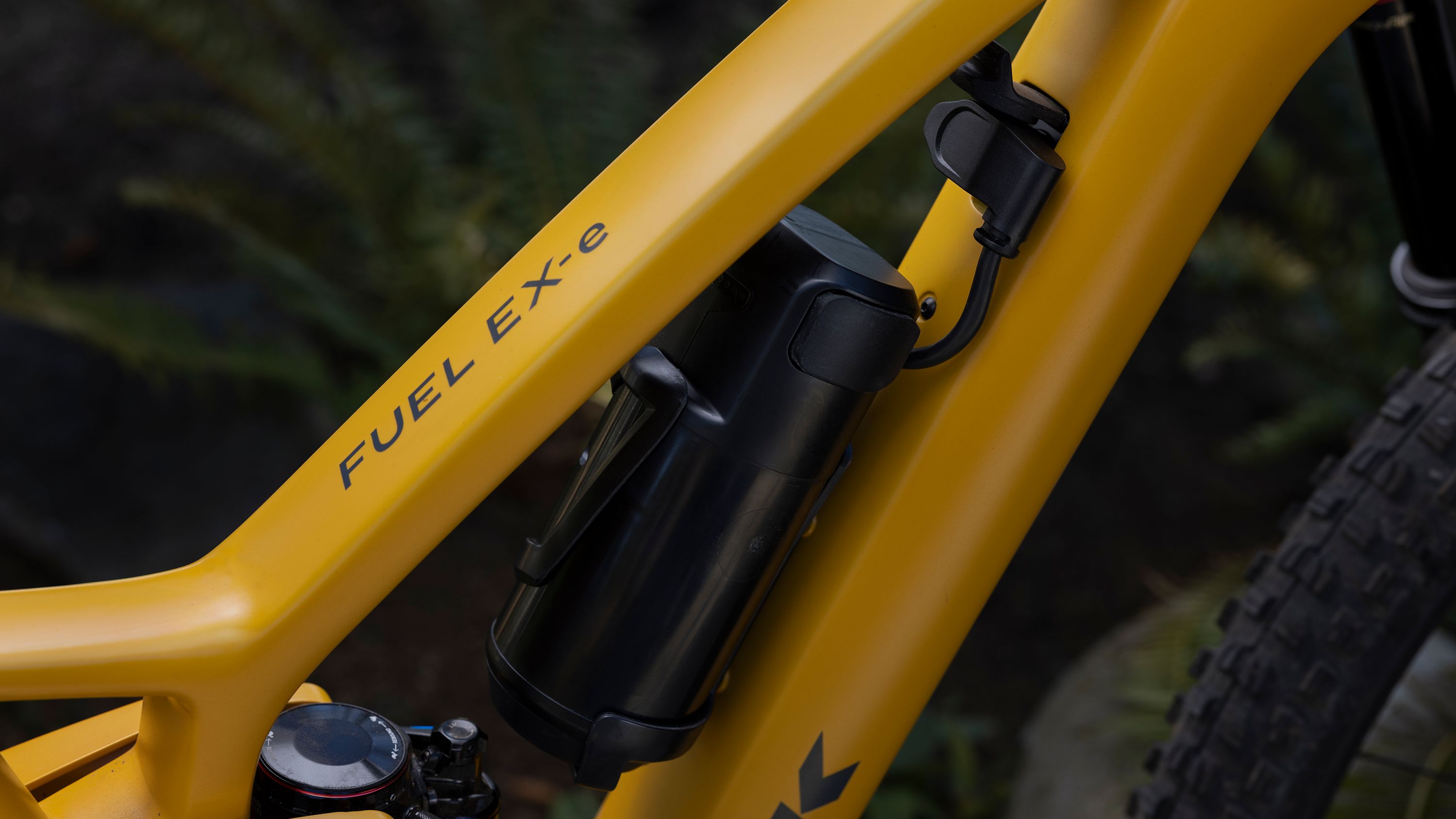

          Range Extender

          Give yourself 40% more range with an optional 160wh external battery. It fits in a standard bottle cage and doesn’t require any complicated wiring or special mounts.

          Connect, customize, calculate

          The Trek Central app seamlessly connects with your bike for custom motor tuning, activity tracking and more ways to analyze and personalize your ride. You even get navigation features and real-time range calculations.

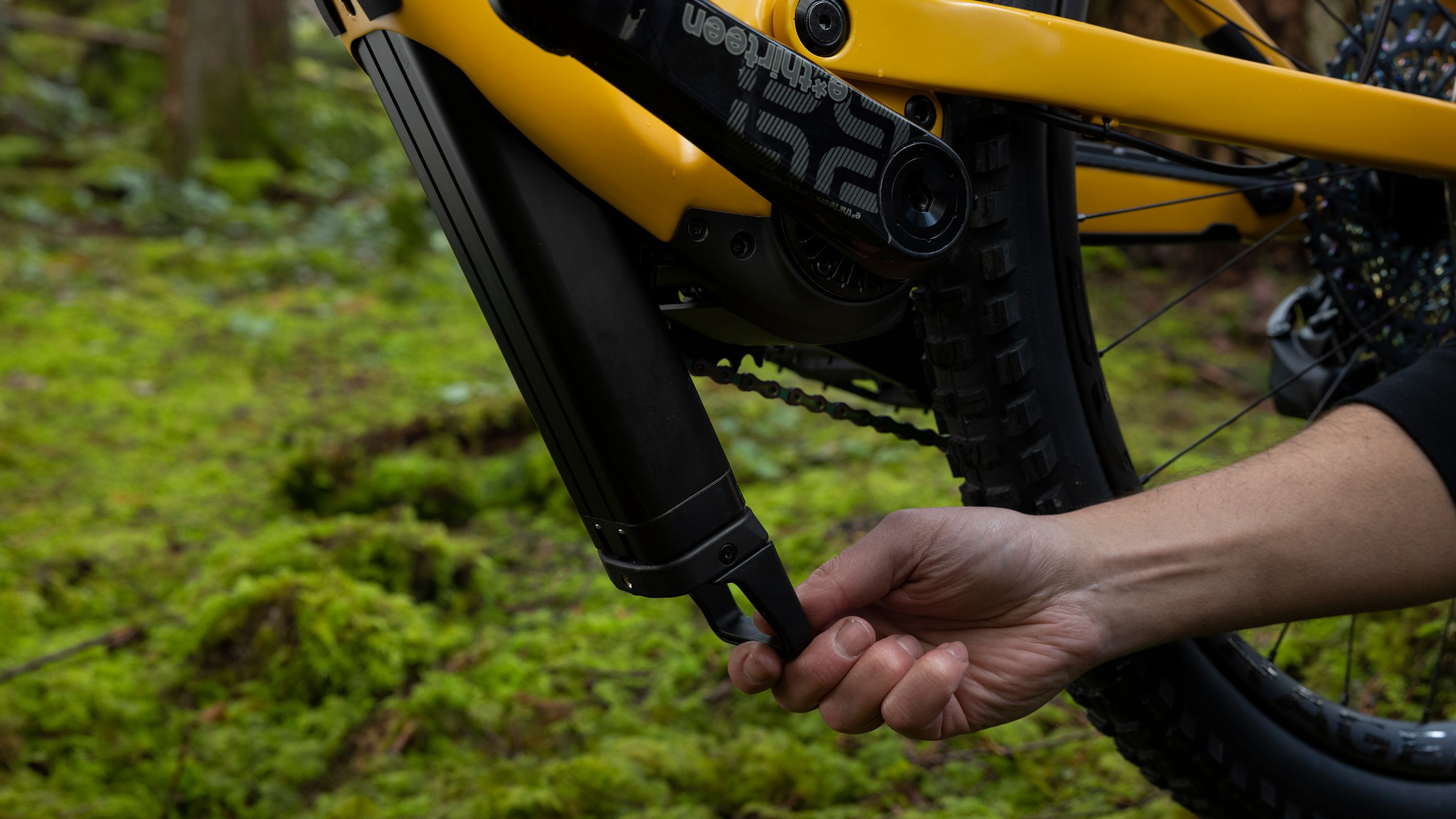

          Removable battery

          The 360 Wh battery gives you power for 2-5 hours. It’s concealed in the downtube, but it’s still easy to remove for more convenient charging.

          Active Braking Pivot

          Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

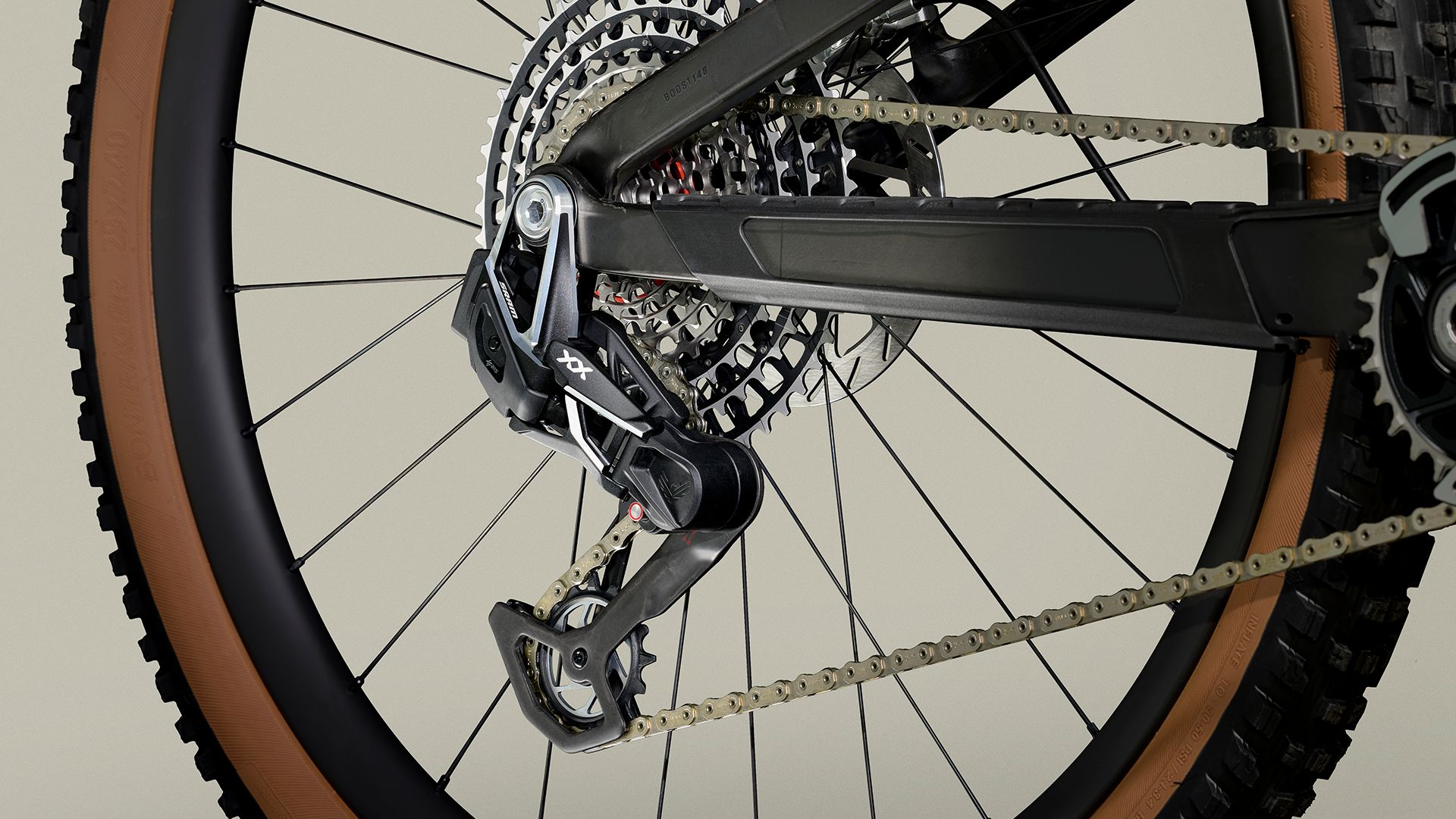

          Transition to transmission

          SRAM Eagle T-Type transmission mounts directly to the frame, skipping that pesky derailleur hanger of yesteryear. This makes for a more robust system thats not only cleaner looking, its also more precise under load, and easier to set up.


          Frame OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
          Fork RockShox Lyrik Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 44mm offset, Boost110, Maxle Stealth, 150mm travel
          Shock RockShox Super Deluxe Ultimate AirWiz, RCT2 damper, 205mm x 60mm
          Wheel Front Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29 /
          Wheel Rear Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 29
          Tire Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50
          Tire Part Quarq TyreWiz tire pressure monitors
          Rim Strip Bontrager TLR
          Skewer Rear Bontrager Switch thru axle, removable lever
          Shifter SRAM AXS POD Ultimate, paired with dropper // SRAM AXS POD Ultimate, paired with dropper
          Rear Derailleur SRAM XX Eagle AXS, T-Type
          Crank SRAM XX, 165mm length
          Cassette SRAM Eagle XS-1297, T-Type, 10-52, 12 speed
          Chain SRAM XX Eagle, T-Type, 12 speed
          Chainring SRAM T-Type, 32T, alloy
          Brake SRAM Code Ultimate 4-piston hydraulic disc // SRAM Code Ultimate 4-piston hydraulic disc
          Brake Rotor SRAM 6-bolt, 200mm
          Saddle Bontrager Arvada, austenite rails, 138mm width
          Seatpost RockShox Reverb AXS, 100mm travel, wireless, 34.9mm, 340mm length
          Handlebar Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 35mm stem length
          Headset Integrated cartridge bearing, 1-1/8 top, 1.5 bottom
          Grips Bontrager XR Trail Elite, nylon lock-on
          Battery TQ 360Wh // SRAM eTap battery pack (with charger)
          Motor TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
          Charger TQ 4A charger

          Geometry Chart

          B B Drop 3.2
          B B Height 34.1
          Chainstay Length 43.8
          Eff Seat Tube Angle 77.3°
          Eff Top Tube 57.2
          Frame Reach 43.4
          Frame Size Letter S
          Frame Size Number 15.5"
          Frame Stack 61.6
          Head Angle 65.3°
          Head Tube Length 10
          Offset 4.4
          Position High
          Seat Tube 38
          Seat Tube Angle 69.3°
          Standover 73.2
          Trail 12.4
          Wheelbase 118.7
          Wheel Size 29"
          B B Drop 3.2
          B B Height 34.1
          Chainstay Length 43.8
          Eff Seat Tube Angle 77.3°
          Eff Top Tube 59.9
          Frame Reach 45.9
          Frame Size Letter M
          Frame Size Number 17.5"
          Frame Stack 62.5
          Head Angle 65.3°
          Head Tube Length 11
          Offset 4.4
          Position High
          Seat Tube 41
          Seat Tube Angle 69.8°
          Standover 73.3
          Trail 12.4
          Wheelbase 121.6
          Wheel Size 29"
          B B Drop 3.2
          B B Height 34.1
          Chainstay Length 43.8
          Eff Seat Tube Angle 77.3°
          Eff Top Tube 62.9
          Frame Reach 48.9
          Frame Size Letter L
          Frame Size Number 19.5"
          Frame Stack 62.5
          Head Angle 65.3°
          Head Tube Length 11
          Offset 4.4
          Position High
          Seat Tube 43.5
          Seat Tube Angle 70.8°
          Standover 73.9
          Trail 12.4
          Wheelbase 124.6
          Wheel Size 29"
          B B Drop 3.2
          B B Height 34.1
          Chainstay Length 43.8
          Eff Seat Tube Angle 77.3°
          Eff Top Tube 65.6
          Frame Reach 51.4
          Frame Size Letter XL
          Frame Size Number 21.5"
          Frame Stack 63.4
          Head Angle 65.3°
          Head Tube Length 12
          Offset 4.4
          Position High
          Seat Tube 47
          Seat Tube Angle 71.3°
          Standover 75.9
          Trail 12.4
          Wheelbase 127.6
          Wheel Size 29"
