Trek fuel ex 9.8 gx axs t-type gen 6

179.00
999.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews
          • Fuel EX Gen 6 gives you 140/150mm of travel and slack, adjustable geometry for an extra capable ride, plus, in-frame storage on all models — even alloy
          • It comes equipped with light and stiff carbon wheels that make quick work of technical terrain and keep you on your line when things get hairy
          • You get the latest technology in SRAMs GX AXS 12-speed transmission for precision shifting — even under load, plus a FOX Performance suspension package
          • With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
          • We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M and up get 29˝ wheels

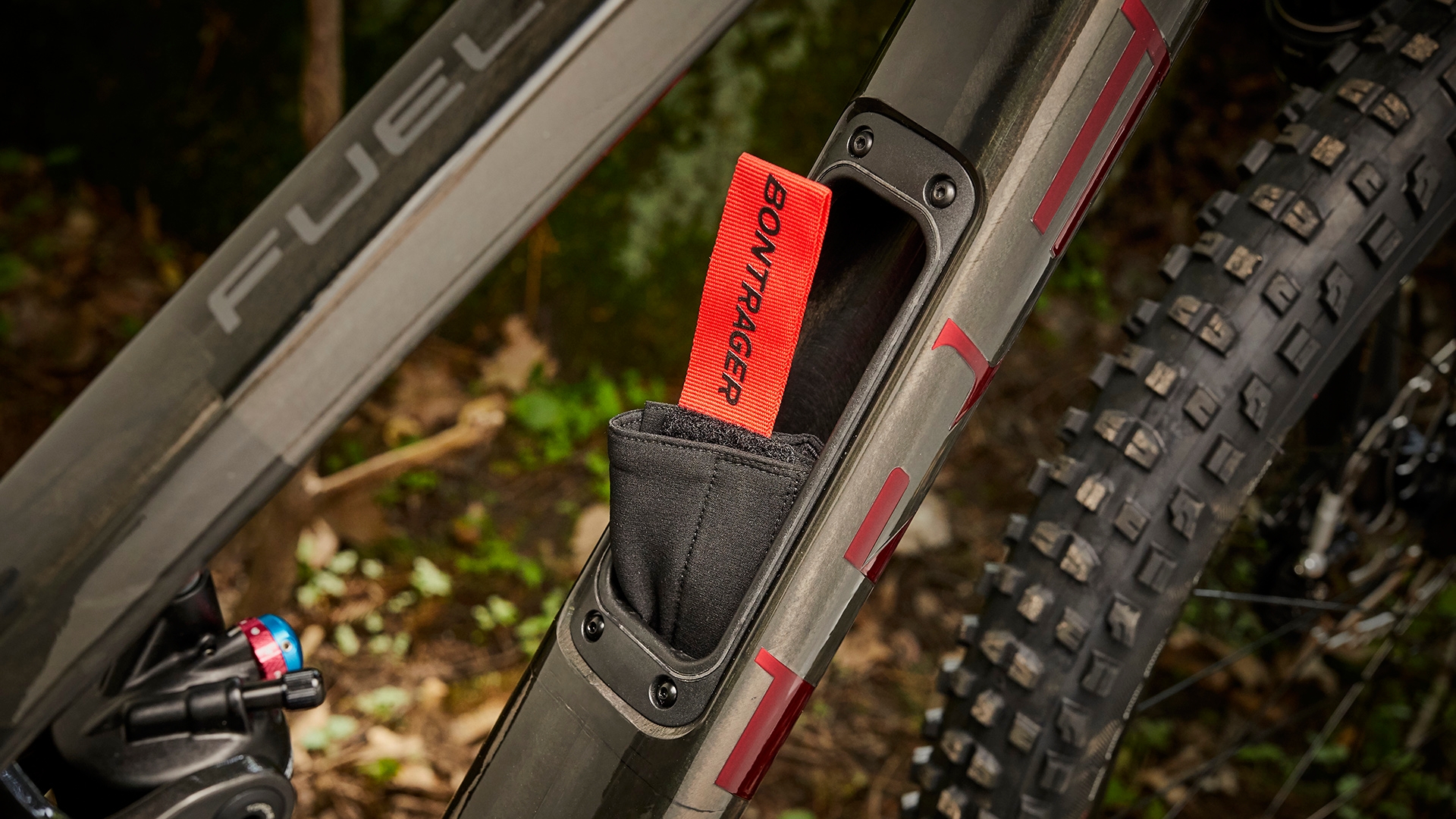

          Internal Storage

          Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

          Active Braking Pivot

          Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

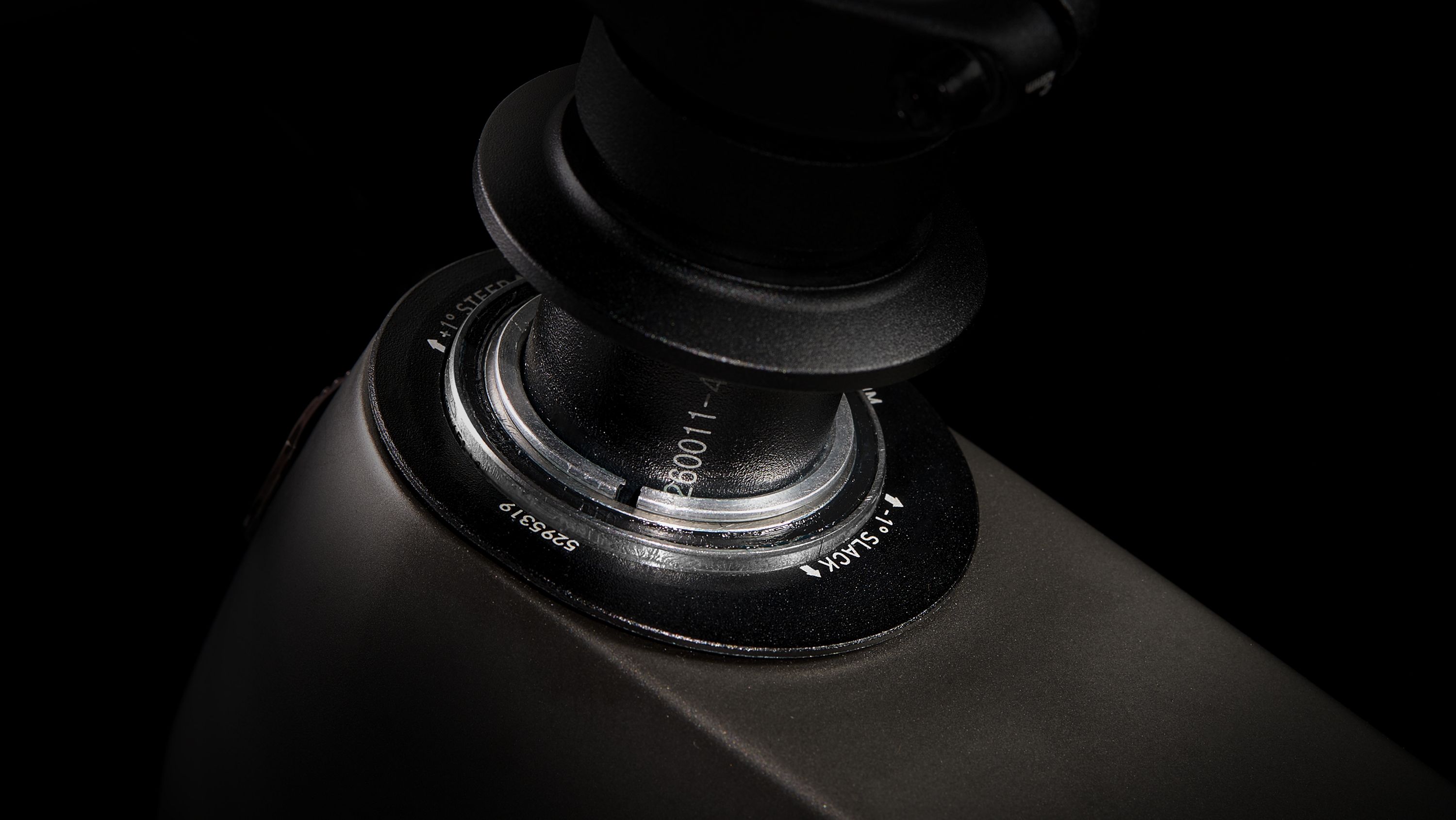

          Slack or steep, the choice is yours

          Install angle adjust headset cups (sold separately) to tweak the 64.5-degree head tube angle a degree steeper or slacker to your liking — all without impacting your bottom bracket height.

          Adjust the sus for full send

          Adjust leverage rate with just a flip of a chip. Ride it in the Less progressive setting for a plusher feel perfect for rugged trails with square-edge bumps. Flip it to More progressive when youre hitting big features and don’t want to bottom-out, or when you want to run a coil shock.

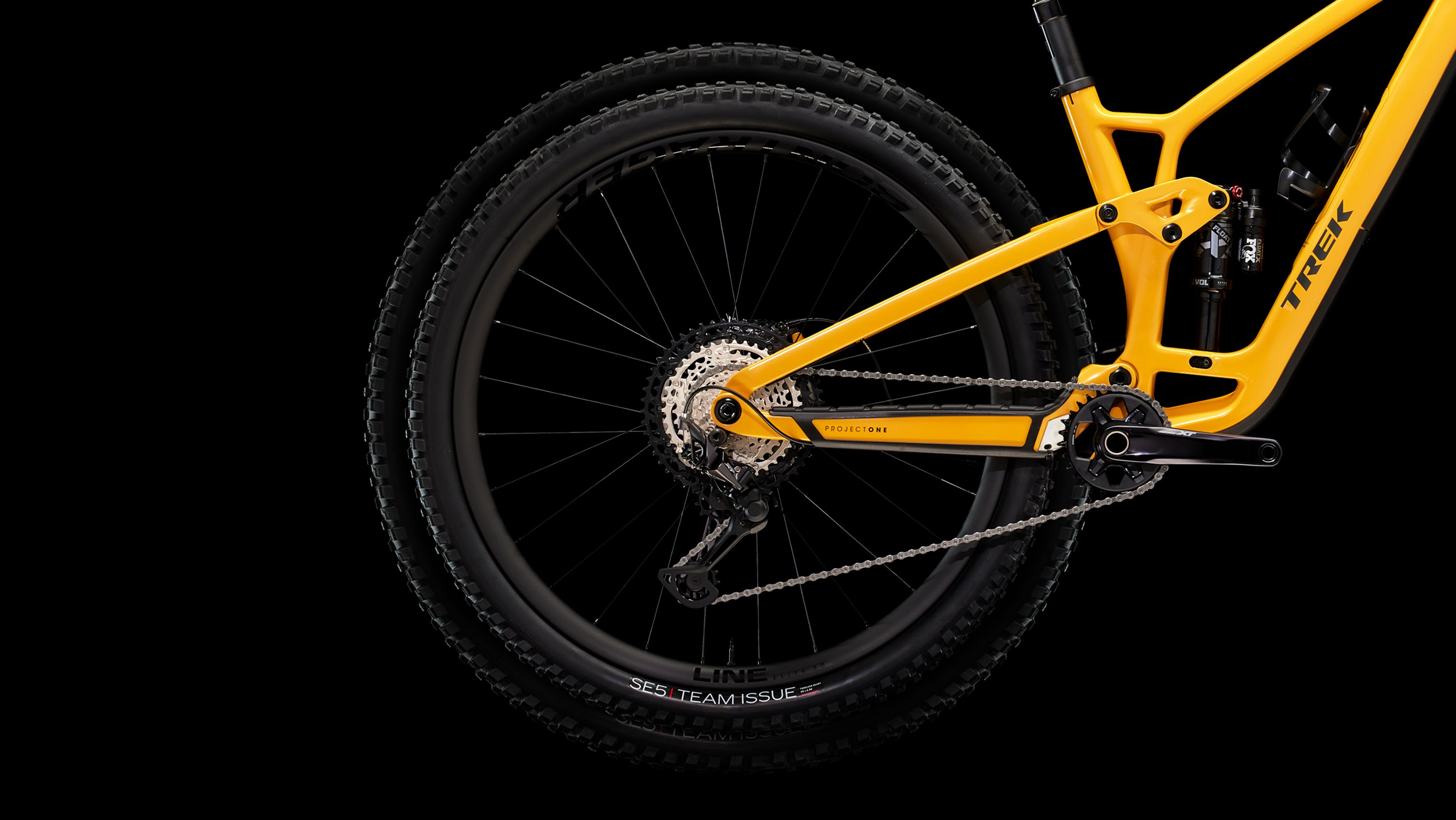

          Size-specific stays

          Size-specific chainstays provide balanced handling to keep the ride nimble for smaller riders and improve front wheel traction on climbs for taller riders.

          Business in the front, party in the back

          Craving the nimble ride of 27.5˝ wheels but don’t want to sacrifice the speed of a 29er? No need to choose. Fuel EX is mullet-ready, just throw Mino Link in high, toss on a 160mm fork, and get ready to party.


          Frame OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
          Fork Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel
          Shock Fox Performance Float X, 2-position damper, 185mm x 55mm
          Wheel Front Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5 /
          Wheel Rear Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 27.5
          Tire Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5x2.50
          Tire Part Bontrager TLR sealant, 6oz
          Rim Strip Bontrager TLR
          Skewer Rear Bontrager Switch thru axle, removable lever
          Shifter SRAM AXS POD
          Rear Derailleur SRAM GX Eagle AXS, T-Type
          Crank SRAM GX Eagle, T-Type, DUB, 30T, 55mm chainline, 170mm length
          Bottom Bracket SRAM DUB MTB Wide, 73mm, BSA threaded
          Cassette SRAM Eagle XS-1275, T-Type,10-52, 12 speed
          Chain SRAM GX Eagle, T-Type, 12 speed
          Brake SRAM CODE Bronze 4-piston hydraulic disc // SRAM CODE Bronze 4-piston hydraulic disc
          Brake Rotor SRAM CenterLine, 6-bolt, round edge, 180mm
          Saddle Bontrager Arvada, austenite rails, 138mm width // Verse Short Comp, steel rails, 145mm width
          Seatpost Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length // Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length
          Handlebar Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 35mm stem length
          Headset Integrated cartridge bearing, 1-1/8 top, 1.5 bottom, angle adjust cup compatible
          Grips Bontrager XR Trail Elite, nylon lock-on
          Battery SRAM eTap battery pack (with charger)

          Geometry Chart

          B B Drop 2.1
          B B Height 33.7
          Chainstay Length 43.4
          Eff Seat Tube Angle 78.9°
          Eff Top Tube 51.6
          Frame Reach 40.4
          Frame Size Letter XS
          Frame Stack 57.2
          Head Angle 64.9°
          Head Tube Length 9.5
          Offset 4.4
          Position High
          Seat Tube 36
          Seat Tube Angle 71.2°
          Standover 71.9
          Trail 11.9
          Wheelbase 114.4
          Wheel Size 27.5"
          B B Drop 2.1
          B B Height 33.7
          Chainstay Length 43.4
          Eff Seat Tube Angle 78.5°
          Eff Top Tube 55
          Frame Reach 43.3
          Frame Size Letter S
          Frame Stack 57.2
          Head Angle 64.8°
          Head Tube Length 9.5
          Offset 4.4
          Position High
          Seat Tube 38
          Seat Tube Angle 71.1°
          Standover 72.8
          Trail 11.9
          Wheelbase 117.4
          Wheel Size 27.5"
          B B Drop 3.1
          B B Height 34.3
          Chainstay Length 43.3
          Eff Seat Tube Angle 79.2°
          Eff Top Tube 55.3
          Frame Reach 43.1
          Frame Size Letter S
          Frame Stack 60.8
          Head Angle 65.1°
          Head Tube Length 9.5
          Offset 4.4
          Position High
          Seat Tube 38
          Seat Tube Angle 71.4°
          Standover 73.8
          Trail 12.5
          Wheelbase 118.5
          Wheel Size 29"
          B B Drop 3.1
          B B Height 34.3
          Chainstay Length 43.3
          Eff Seat Tube Angle 78.8°
          Eff Top Tube 58.3
          Frame Reach 45.6
          Frame Size Letter M
          Frame Stack 61.2
          Head Angle 65.1°
          Head Tube Length 10
          Offset 4.4
          Position High
          Seat Tube 41
          Seat Tube Angle 71.4°
          Standover 74.4
          Trail 12.5
          Wheelbase 121.2
          Wheel Size 29"
          B B Drop 3.1
          B B Height 34.3
          Chainstay Length 43.8
          Eff Seat Tube Angle 78.0°
          Eff Top Tube 60.6
          Frame Reach 47.6
          Frame Size Letter ML
          Frame Stack 61.2
          Head Angle 65.1°
          Head Tube Length 10
          Offset 4.4
          Position High
          Seat Tube 42
          Seat Tube Angle 71.4°
          Standover 75.1
          Trail 12.5
          Wheelbase 123.2
          Wheel Size 29"
          B B Drop 3.1
          B B Height 34.3
          Chainstay Length 43.8
          Eff Seat Tube Angle 77.7°
          Eff Top Tube 62.6
          Frame Reach 49.1
          Frame Size Letter L
          Frame Stack 61.7
          Head Angle 65.1°
          Head Tube Length 10.5
          Offset 4.4
          Position High
          Seat Tube 43.5
          Seat Tube Angle 71.4°
          Standover 75.4
          Trail 12.5
          Wheelbase 124.9
          Wheel Size 29"
          B B Drop 3
          B B Height 34.3
          Chainstay Length 44.3
          Eff Seat Tube Angle 77.1°
          Eff Top Tube 66
          Frame Reach 52.1
          Frame Size Letter XL
          Frame Stack 63
          Head Angle 65.0°
          Head Tube Length 12
          Offset 4.4
          Position High
          Seat Tube 47
          Seat Tube Angle 71.3°
          Standover 76.7
          Trail 12.5
          Wheelbase 128.6
          Wheel Size 29"
