Trek fuel ex 8 gen 6

179.00
999.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews
          • This bike is built to take on the singletrack, with modern geometry thats evolved to handle the rough and rowdy
          • Youll get upgraded components where it matters most, with 12-speed XT shifting, and a rock-gobbling FOX Rhythm 36 fork
          • With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
          • We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M and up get 29˝ wheels
          • Guided internal routing, universal derailleur hanger, improved hardware, and a threaded BB make maintenance a breeze

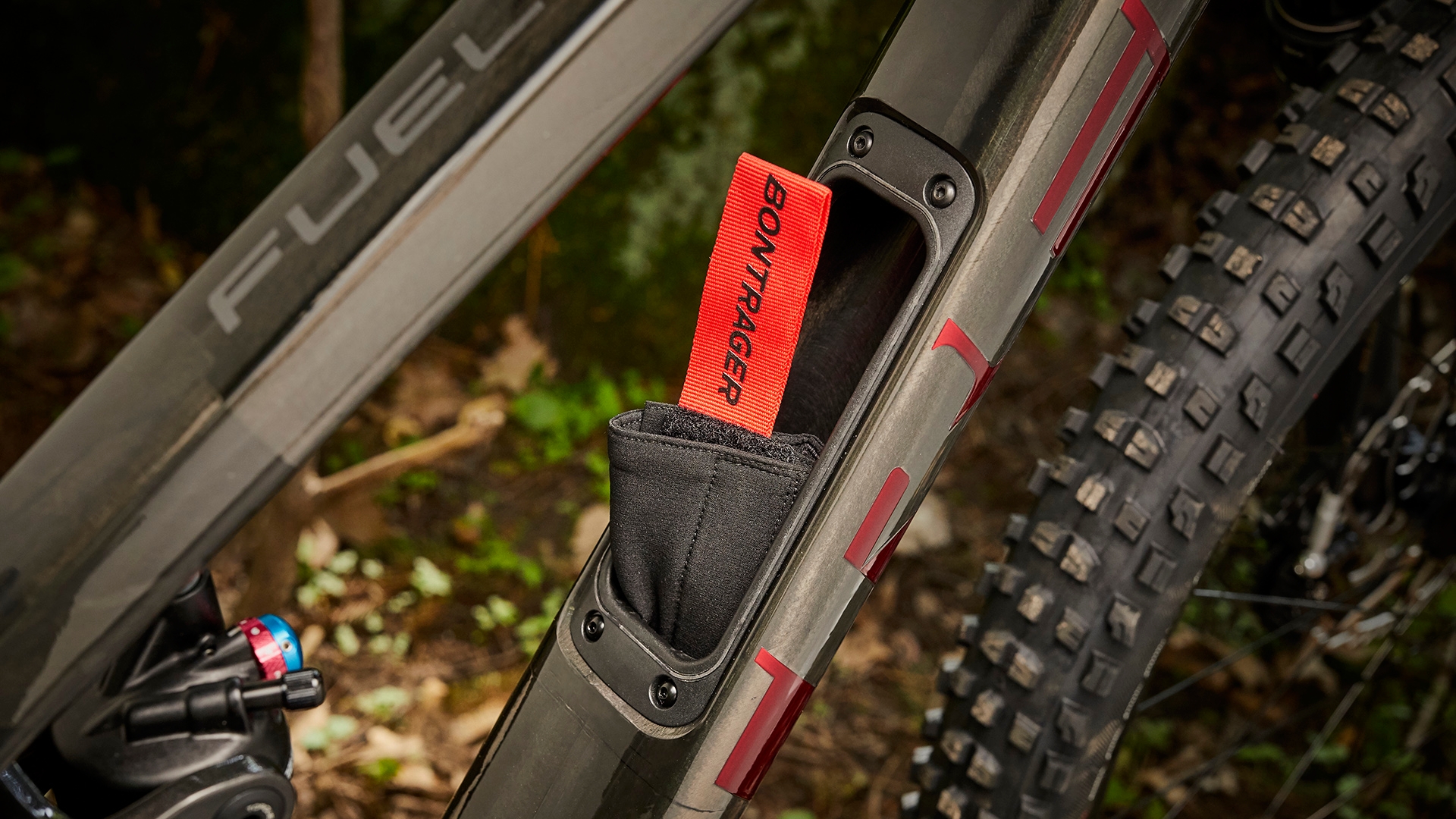

          Internal Storage

          Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

          Active Braking Pivot

          Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

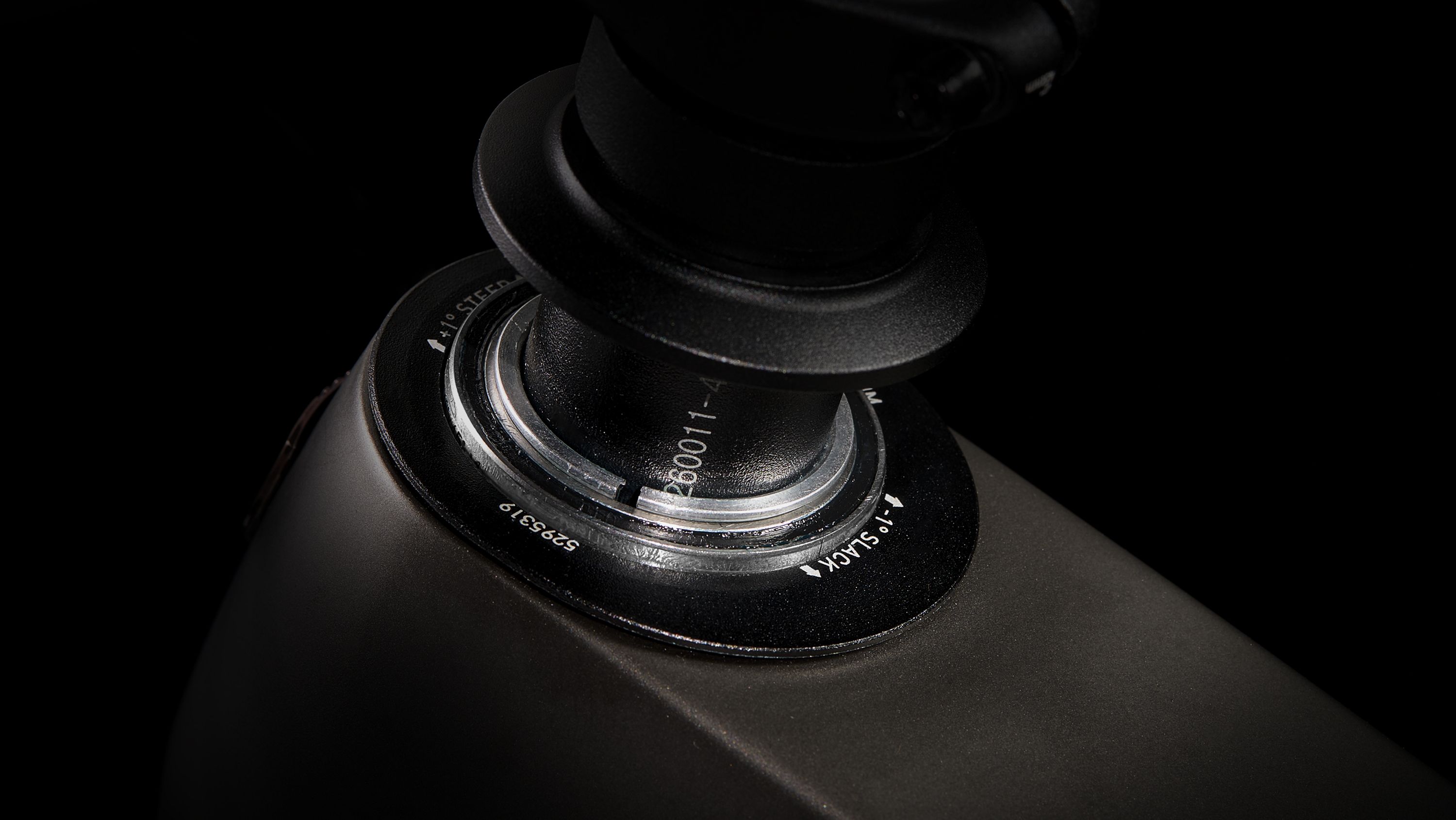

          Slack or steep, the choice is yours

          Install angle adjust headset cups (sold separately) to tweak the 64.5-degree head tube angle a degree steeper or slacker to your liking — all without impacting your bottom bracket height.

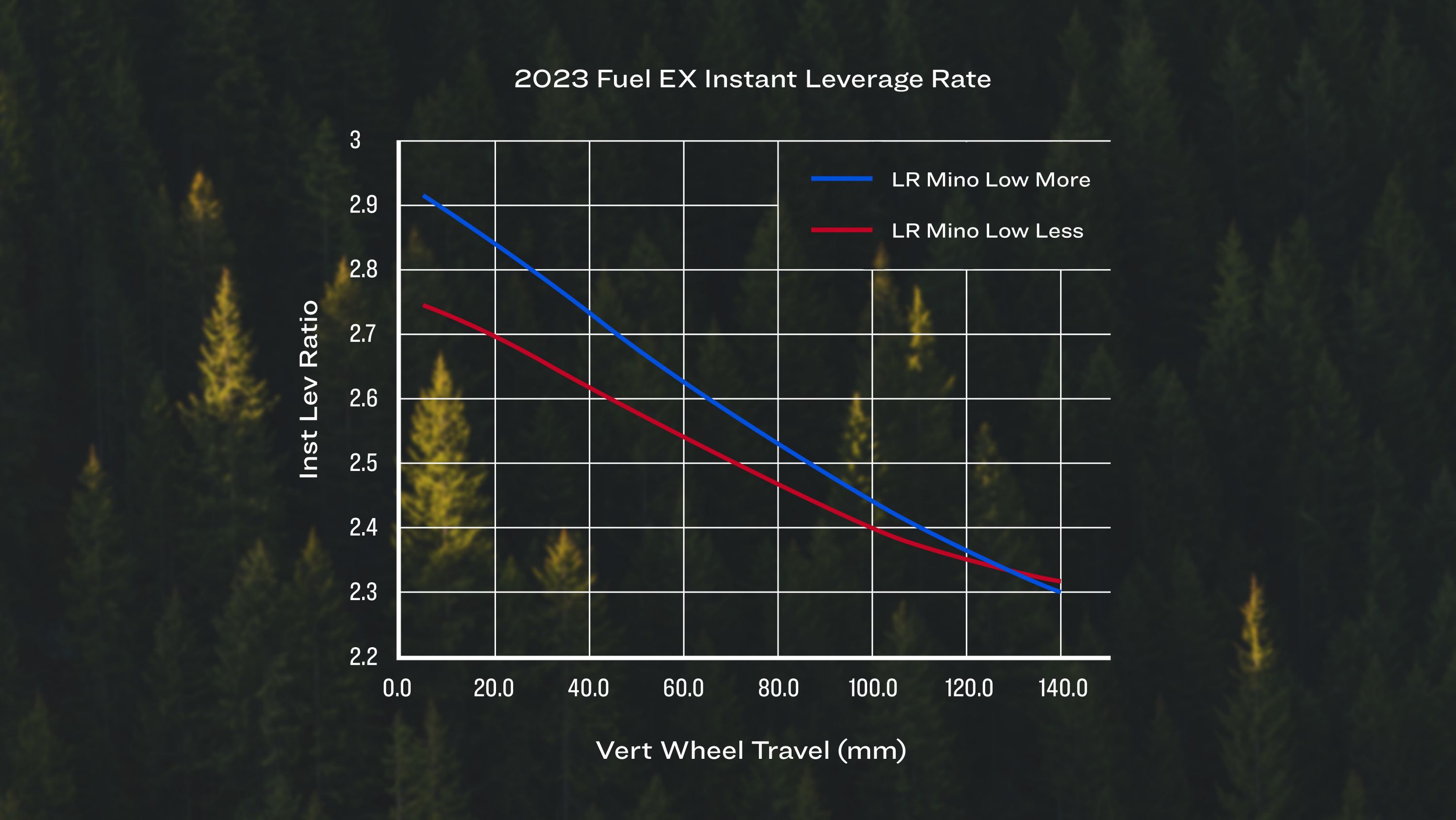

          Adjust the sus for full send

          Adjust leverage rate with just a flip of a chip. Ride it in the Less progressive setting for a plusher feel perfect for rugged trails with square-edge bumps. Flip it to More progressive when youre hitting big features and don’t want to bottom-out, or when you want to run a coil shock.

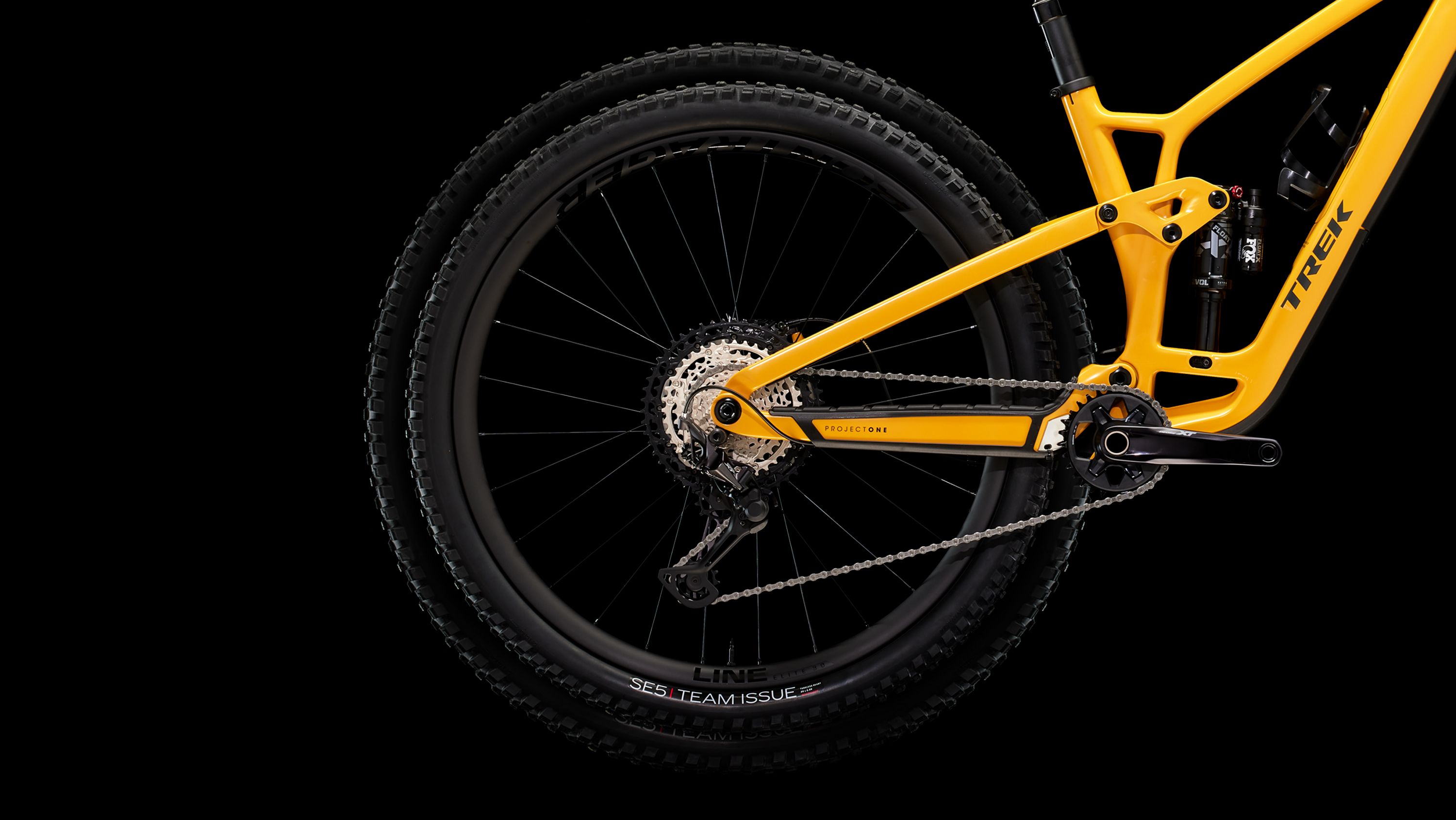

          Size-specific stays

          Size-specific chainstays provide balanced handling to keep the ride nimble for smaller riders and improve front wheel traction on climbs for taller riders.

          Business in the front, party in the back

          Craving the nimble ride of 27.5˝ wheels but don’t want to sacrifice the speed of a 29er? No need to choose. Fuel EX is mullet-ready, just throw Mino Link in high, toss on a 160mm fork, and get ready to party.


          Frame Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
          Fork Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel
          Shock Fox Performance Float X, 2-position damper, 185mm x 55mm
          Wheel Front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5 /
          Wheel Rear Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12mm thru axle, 27.5
          Tire Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5x2.50
          Tire Part Bontrager TLR sealant, 6oz
          Rim Strip Bontrager TLR
          Skewer Rear Bontrager Switch thru axle, removable lever
          Shifter Shimano XT M8100, 12 speed
          Rear Derailleur Shimano XT M8100, long cage
          Crank Shimano Deore M6120, 30T ring, 55mm chainline, 170mm length
          Bottom Bracket Shimano BB-MT501 BSA
          Cassette Shimano XT M8100, 10-51, 12 speed
          Chain Shimano SLX M7100, 12 speed
          Brake Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper // Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
          Brake Rotor Shimano RT66, 6-bolt, 180mm // Shimano RT66, 6-bolt, 203mm
          Saddle Bontrager Arvada, hollow chromoly rails, 138mm width
          Seatpost TranzX JD-YSP39, 100mm travel, internal routing, 34.9mm
          Handlebar Bontrager Line, alloy, 35mm, 27.5mm rise, 750mm width
          Stem Bontrager Elite, 35mm, 0 degree, 35mm length
          Headset Integrated cartridge bearing, 1-1/8 top, 1.5 bottom, angle adjust cup compatible
          Grips Bontrager XR Trail Elite, nylon lock-on

          Geometry Chart

          B B Drop 2.1
          B B Height 33.7
          Chainstay Length 43.4
          Eff Seat Tube Angle 78.9°
          Eff Top Tube 51.6
          Frame Reach 40.4
          Frame Size Letter XS
          Frame Stack 57.2
          Head Angle 64.9°
          Head Tube Length 9.5
          Offset 4.4
          Position High
          Seat Tube 36
          Seat Tube Angle 71.2°
          Standover 72
          Trail 11.9
          Wheelbase 114.4
          Wheel Size 27.5"
          B B Drop 2.1
          B B Height 33.7
          Chainstay Length 43.4
          Eff Seat Tube Angle 78.5°
          Eff Top Tube 55
          Frame Reach 43.3
          Frame Size Letter S
          Frame Stack 57.2
          Head Angle 64.8°
          Head Tube Length 9.5
          Offset 4.4
          Position High
          Seat Tube 38
          Seat Tube Angle 71.1°
          Standover 72.7
          Trail 11.9
          Wheelbase 117.4
          Wheel Size 27.5"
          B B Drop 3.1
          B B Height 34.3
          Chainstay Length 43.3
          Eff Seat Tube Angle 79.2°
          Eff Top Tube 55.3
          Frame Reach 43.1
          Frame Size Letter S
          Frame Stack 60.8
          Head Angle 65.1°
          Head Tube Length 9.5
          Offset 4.4
          Position High
          Seat Tube 38
          Seat Tube Angle 71.4°
          Standover 74.3
          Trail 12.5
          Wheelbase 118.5
          Wheel Size 29"
          B B Drop 3.1
          B B Height 34.3
          Chainstay Length 43.3
          Eff Seat Tube Angle 78.8°
          Eff Top Tube 58.3
          Frame Reach 45.6
          Frame Size Letter M
          Frame Stack 61.2
          Head Angle 65.1°
          Head Tube Length 10
          Offset 4.4
          Position High
          Seat Tube 41
          Seat Tube Angle 71.4°
          Standover 74.3
          Trail 12.5
          Wheelbase 121.2
          Wheel Size 29"
          B B Drop 3.1
          B B Height 34.3
          Chainstay Length 43.8
          Eff Seat Tube Angle 78.0°
          Eff Top Tube 60.6
          Frame Reach 47.6
          Frame Size Letter ML
          Frame Stack 61.2
          Head Angle 65.1°
          Head Tube Length 10
          Offset 4.4
          Position High
          Seat Tube 42
          Seat Tube Angle 71.4°
          Standover 74.8
          Trail 12.5
          Wheelbase 123.2
          Wheel Size 29"
          B B Drop 3.1
          B B Height 34.3
          Chainstay Length 43.8
          Eff Seat Tube Angle 77.7°
          Eff Top Tube 62.6
          Frame Reach 49.1
          Frame Size Letter L
          Frame Stack 61.7
          Head Angle 65.1°
          Head Tube Length 10.5
          Offset 4.4
          Position High
          Seat Tube 43.5
          Seat Tube Angle 71.4°
          Standover 75.4
          Trail 12.5
          Wheelbase 124.9
          Wheel Size 29"
          B B Drop 3
          B B Height 34.3
          Chainstay Length 44.3
          Eff Seat Tube Angle 77.1°
          Eff Top Tube 66
          Frame Reach 52.1
          Frame Size Letter XL
          Frame Stack 63
          Head Angle 65.0°
          Head Tube Length 12
          Offset 4.4
          Position High
          Seat Tube 47
          Seat Tube Angle 71.3°
          Standover 77.4
          Trail 12.5
          Wheelbase 128.6
          Wheel Size 29"
          B B Drop 3
          B B Height 34.3
          Chainstay Length 44.8
          Eff Seat Tube Angle 76.5°
          Eff Top Tube 69.5
          Frame Reach 55.1
          Frame Size Letter XXL
          Frame Stack 64.4
          Head Angle 65.0°
          Head Tube Length 13.5
          Offset 4.4
          Position High
          Seat Tube 50
          Seat Tube Angle 71.3°
          Standover 78.1
          Trail 12.5
          Wheelbase 132.2
          Wheel Size 29"
