Top Fuel RSL L Navy Smoke

179.00
999.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews

          Make Top Fuel yours

          Opt for light parts and a 120mm fork for a featherweight Top Fuel, or a 140mm fork and longer-stroke 130mm rear shock for extra versatility. Room for a longer dropper and MX wheels lets you customize Top Fuel into an ultimate playful trail whip.

          4-way Mino Link

          Easily adjust the suspension and geometry four different ways for where and how you ride. With the flip of a chip, you can ride with more or less progressive suspension, and tweak your geometry for a slacker head tube and lower BB or steeper head tube and higher BB.

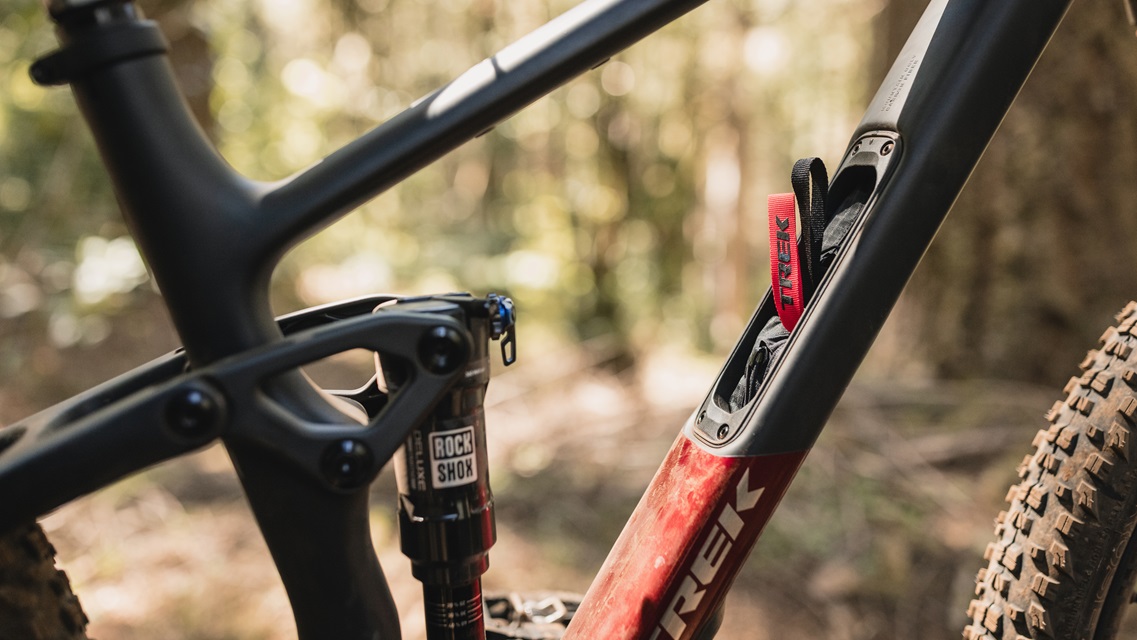

          New internal storage with new BITS bags

          New internal frame storage bags make it easy to ditch the pack and still carry your ride essentials.

          Free your mind and fly

          RockShox Flight Attendant uses real-time ride data from you and the terrain to automatically adjust your compression settings to reduce decision fatigue and deliver the most efficient ride on every part of the course.

          Active Braking Pivot

          Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

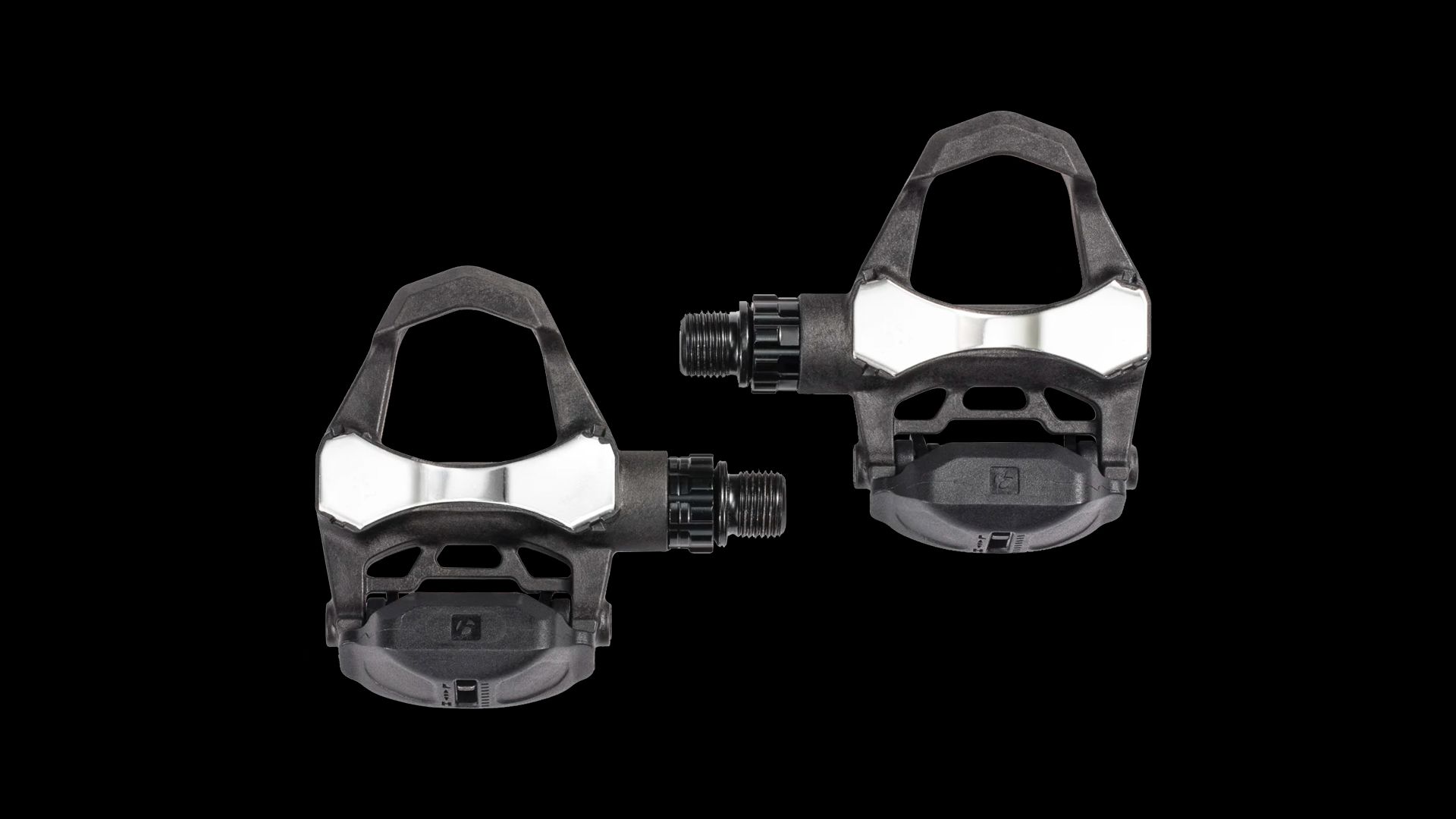

          Don’t forget your pedals

          This bike doesn’t come with pedals because you’ll have a better time on your new bike if you choose your own. See the pedal guide to find the best pedals for your riding style. We recommend clipless road pedals for control and efficiency.


          Frame OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120mm travel
          Fork RockShox SID Ultimate, Flight Attendant Race Day damper, Stealth DebonAir spring, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
          Shock RockShox SIDLuxe Ultimate Flight Attendant, 185x50mm
          Wheel Front Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29
          Wheel Rear Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Boost148, 12mm thru axle, 29
          Tire Pirelli Scorpion XC RC, Tubeless Ready, Team Edition Pro Wall, aramid bead, 120 tpi, 29x2.40
          Tire Part Bontrager TLR sealant, 6oz
          Rim Strip Bontrager TLR
          Skewer Rear Bontrager Switch thru axle, removable lever
          Shifter SRAM AXS pod
          Rear Derailleur SRAM X0 Eagle AXS, T-Type
          Crank SRAM XO Eagle, DUB, 34T, T-Type, 55mm chainline, 170mm length
          Bottom Bracket SRAM DUB MTB Wide, 73mm, BSA threaded
          Cassette SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
          Chain SRAM X0 Eagle, T-Type, 12 speed
          Brake Rotor SRAM HS2, 6-bolt, 180mm
          Saddle Verse Short Pro, carbon rails, 145mm width
          Seatpost Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length
          Handlebar Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0mm handlebar rise, 750mm width, -13 degree stem rise, 90mm length
          Grips Trek Line Elite, lock-on

          Geometry Chart

          B B Drop 2.9
          B B Height 34.4
          Chainstay Length 43.9
          Eff Seat Tube Angle 76.8°
          Eff Top Tube 62.9
          Frame Reach 48.6
          Frame Size Letter L
          Frame Stack 60.4
          Head Angle 66.4°
          Head Tube Length 11.5
          Offset 4.4
          Position High
          Seat Tube 43.5
          Seat Tube Angle 70.9°
          Standover 74.9
          Trail 11.5
          Wheelbase 122.4
          Wheel Size 29"
