Fuel EX 9.9 XO AXS XL 29 Deep Smoke

179.00
999.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews
          • Fuel EX Gen 6 gives you 140/150mm of travel with extra adjustability features and more stable handling, plus a more robust frame with internal storage
          • We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5″ wheels, S frames get to choose between 27.5″ or 29″, and sizes M and up get 29″ wheels
          • Its ready to rip with lightweight carbon wheels that easily tackle rough terrain and hold their line when things get rowdy
          • In-frame storage makes it easy to bring along all of your essentials, while keeping your setup streamlined and sleek
          • With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations

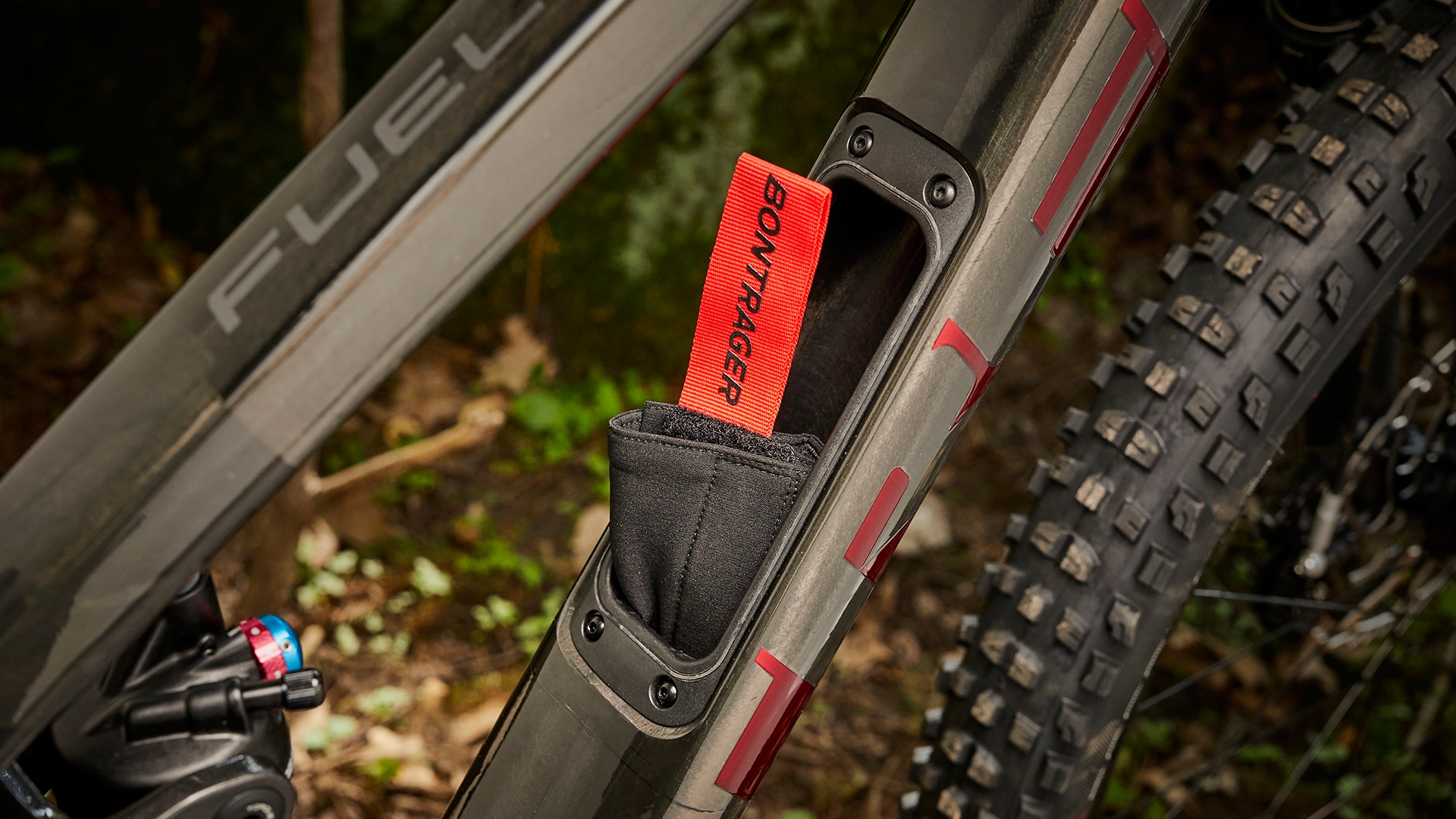

          Internal Storage

          Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

          Active Braking Pivot

          Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

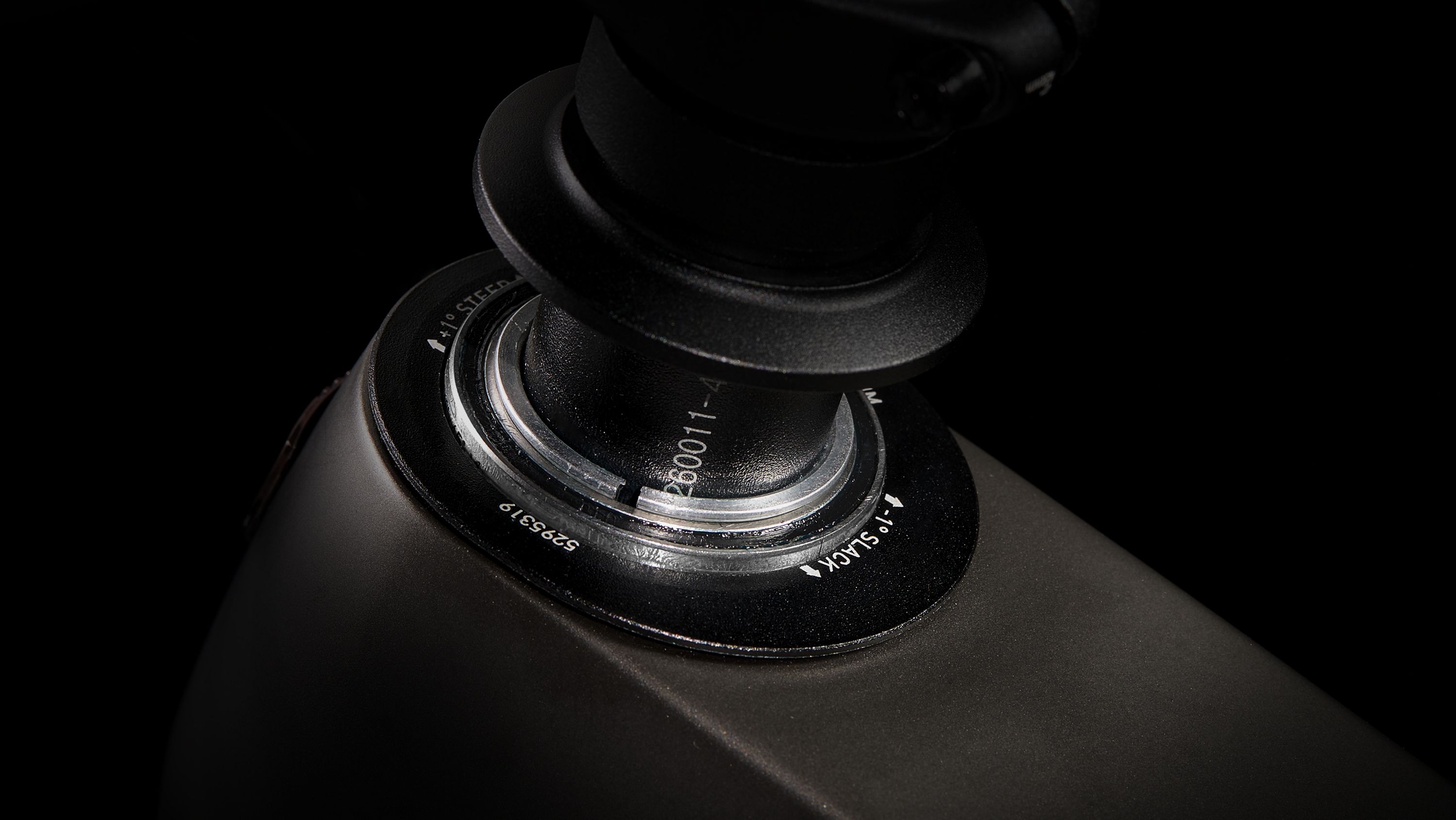

          Slack or steep, the choice is yours

          Install angle adjust headset cups (sold separately) to tweak the 64.5-degree head tube angle a degree steeper or slacker to your liking — all without impacting your bottom bracket height.

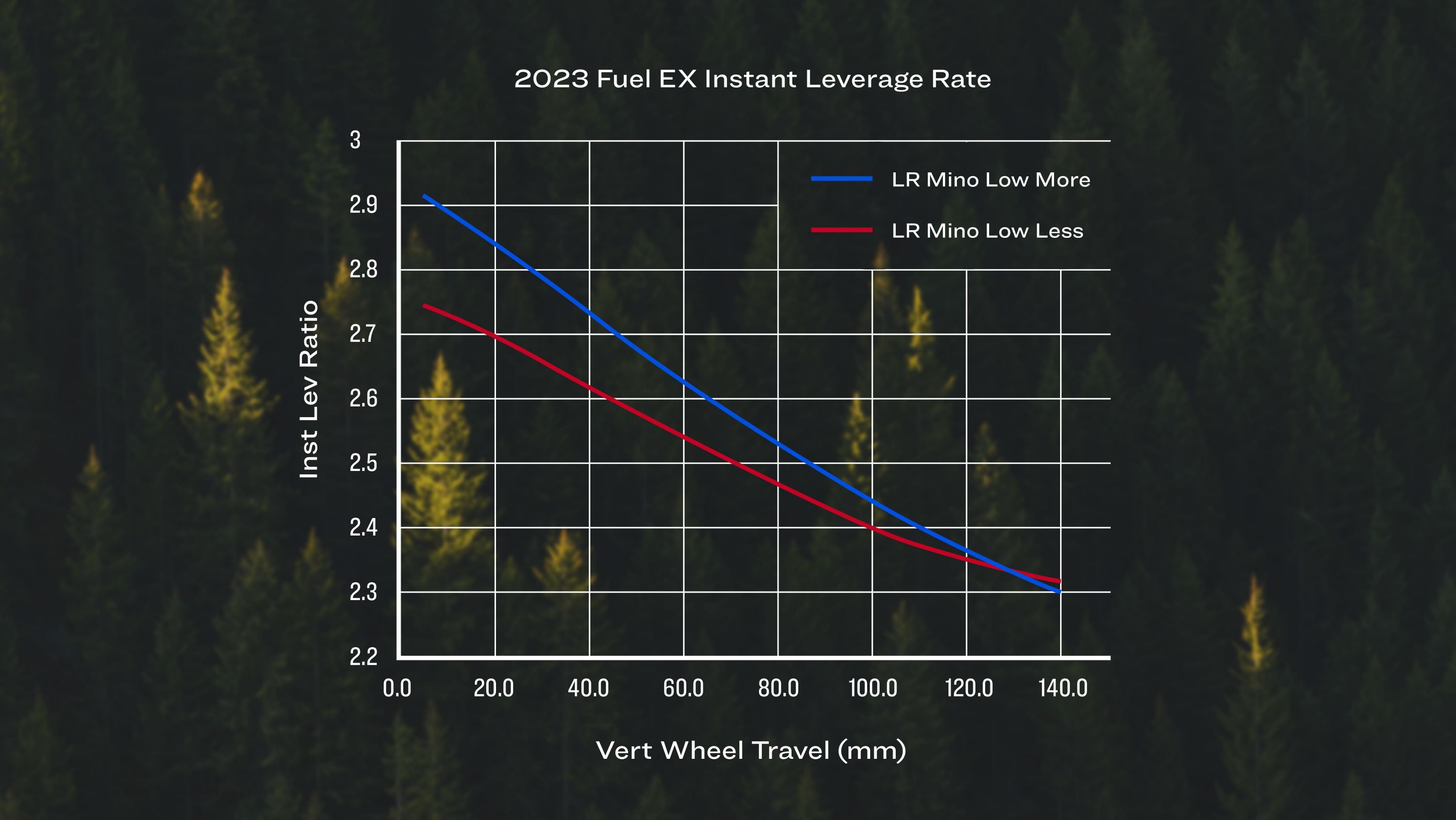

          Adjust the sus for full send

          Adjust leverage rate with just a flip of a chip. Ride it in the Less progressive setting for a plusher feel perfect for rugged trails with square-edge bumps. Flip it to More progressive when youre hitting big features and don’t want to bottom-out, or when you want to run a coil shock.

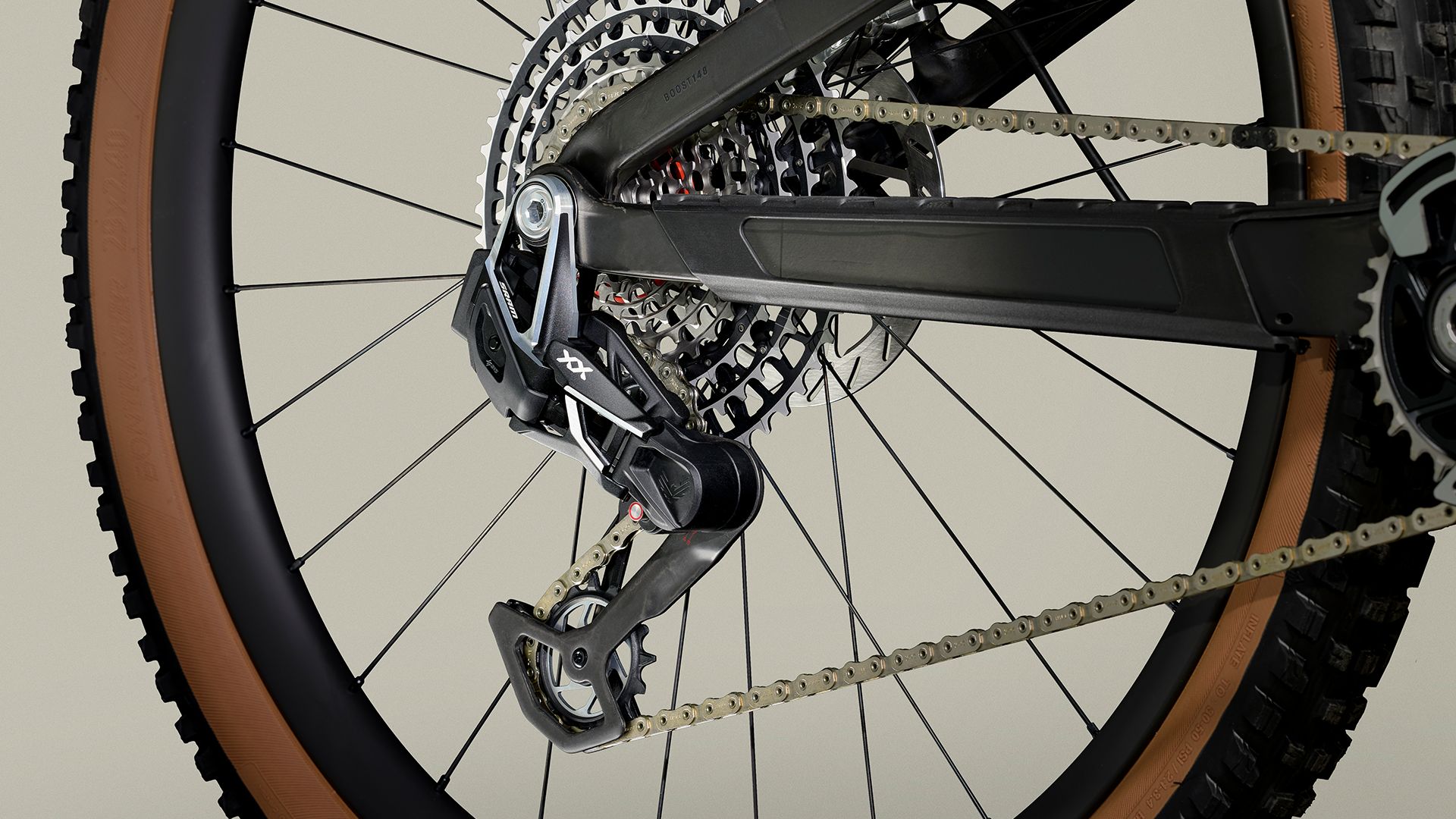

          Transition to transmission

          SRAM Eagle T-Type transmission mounts directly to the frame, skipping that pesky derailleur hanger of yesteryear. This makes for a more robust system thats not only cleaner looking, its also more precise under load, and easier to set up.

          Size-specific stays

          Size-specific chainstays provide balanced handling to keep the ride nimble for smaller riders and improve front wheel traction on climbs for taller riders.


          Frame OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
          Fork Fox Factory 36, Float EVOL air spring, GRIP X2 damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 180mm direct mount brake tab, 150mm travel
          Shock Fox Factory Float X, 2-position damper, 185mm x 55mm
          Wheel Front Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29 /
          Wheel Rear Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 29
          Tire Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50 // Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29x2.50
          Tire Part Bontrager TLR sealant, 6oz
          Skewer Rear Bontrager Switch thru axle, removable lever
          Shifter
          Rear Derailleur SRAM X0 Eagle AXS, T-Type
          Crank SRAM X0 Eagle, DUB, 30T, T-Type, 55mm chainline, 170mm length
          Bottom Bracket SRAM DUB MTB Wide, 73mm, BSA threaded
          Cassette SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
          Chain SRAM X0 Eagle, T-Type, 12 speed
          Brake SRAM Maven Silver 4-piston hydraulic disc // SRAM Maven Silver 4-piston hydraulic disc
          Brake Rotor SRAM HS2, 6-bolt, 180mm // SRAM 6-bolt, 200mm
          Saddle Verse Short Pro, carbon rails, 145mm width
          Seatpost RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length
          Handlebar Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
          Stem Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 35mm length
          Headset Integrated cartridge bearing, 1-1/8 top, 1.5 bottom, angle adjust cup compatible
          Grips Bontrager XR Trail Elite, nylon lock-on

          Geometry Chart

          B B Drop 3
          B B Height 34.3
          Chainstay Length 44.3
          Eff Seat Tube Angle 77.1°
          Eff Top Tube 66
          Frame Reach 52.1
          Frame Size Letter XL
          Frame Stack 63
          Head Angle 65.0°
          Head Tube Length 12
          Offset 4.4
          Position High
          Seat Tube 47
          Seat Tube Angle 71.3°
          Standover 76.7
          Trail 12.5
          Wheelbase 128.6
          Wheel Size 29"
