Fuel EX 9.8 XT L 29 Deep Smoke

179.00
999.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews
          • Fuel EX Gen 6 gives you 140/150mm of travel with extra adjustability features and more stable handling, plus a more robust frame with internal storage
          • We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5″ wheels, S frames get to choose between 27.5″ or 29″, and sizes M and up get 29″ wheels
          • Its ready to rip with lightweight carbon wheels that easily tackle rough terrain and hold their line when things get rowdy
          • In-frame storage makes it easy to bring along all of your essentials, while keeping your setup streamlined and sleek
          • With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations

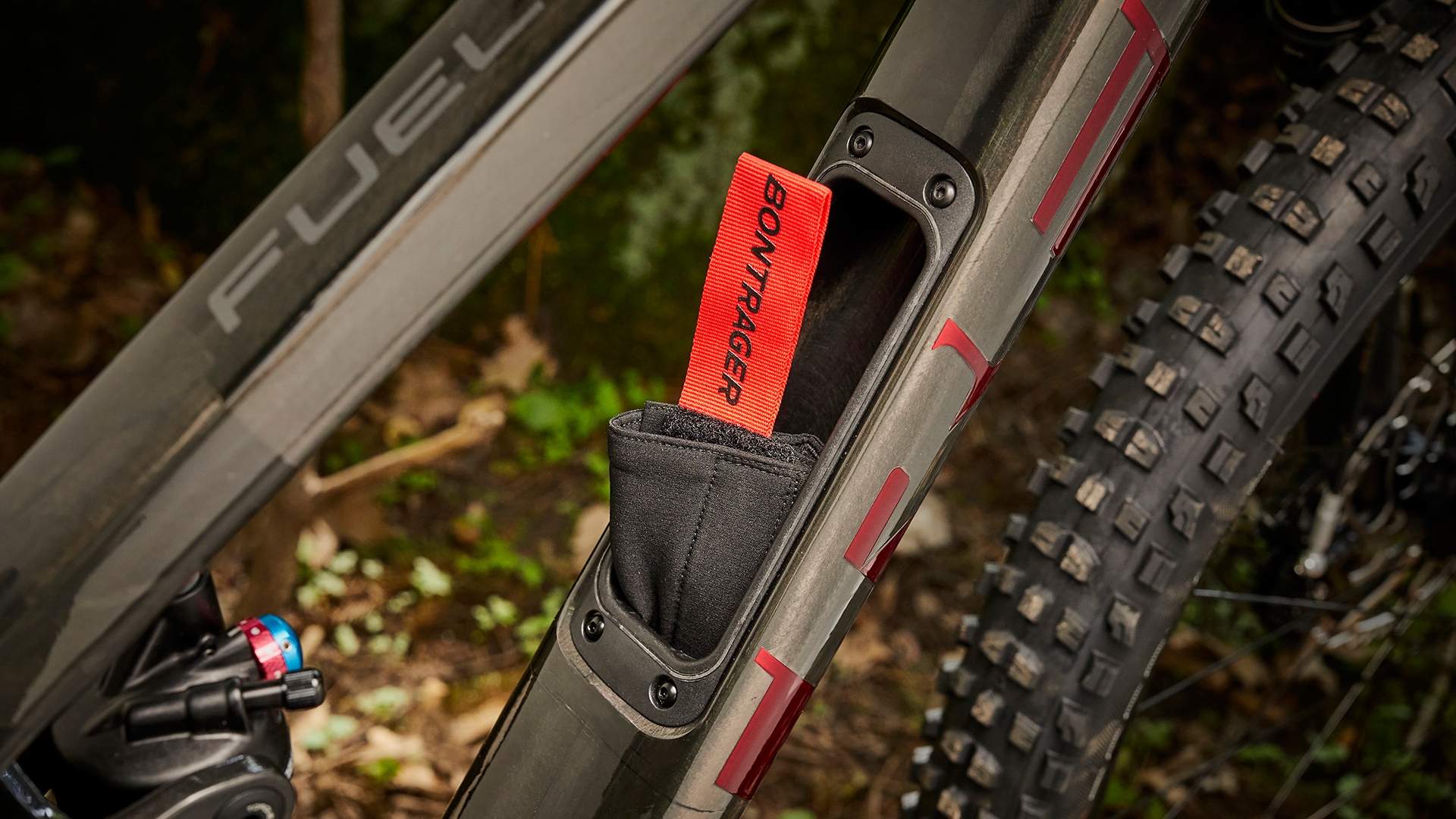

          Internal Storage

          Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

          Active Braking Pivot

          Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

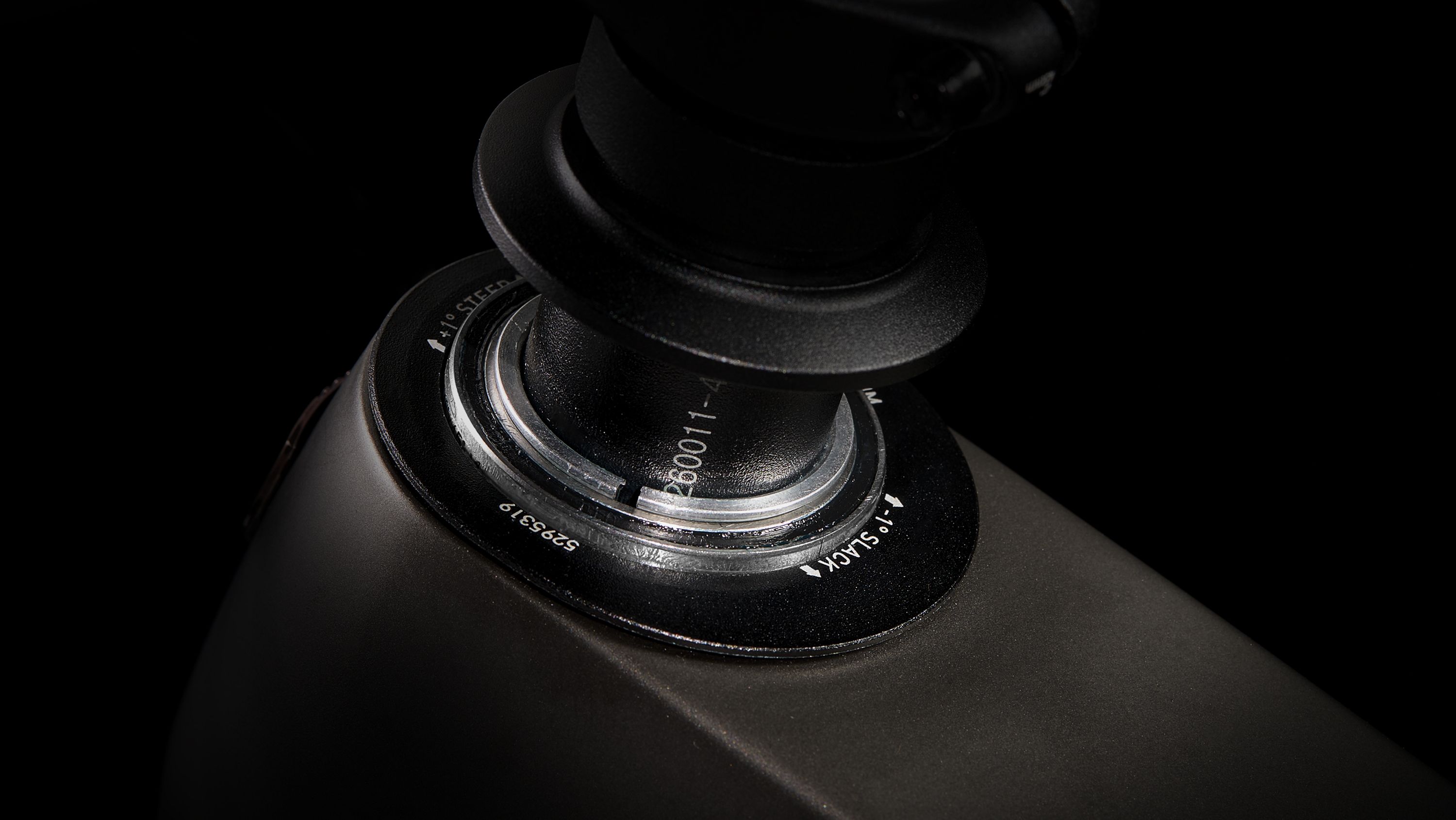

          Slack or steep, the choice is yours

          Install angle adjust headset cups (sold separately) to tweak the 64.5-degree head tube angle a degree steeper or slacker to your liking — all without impacting your bottom bracket height.

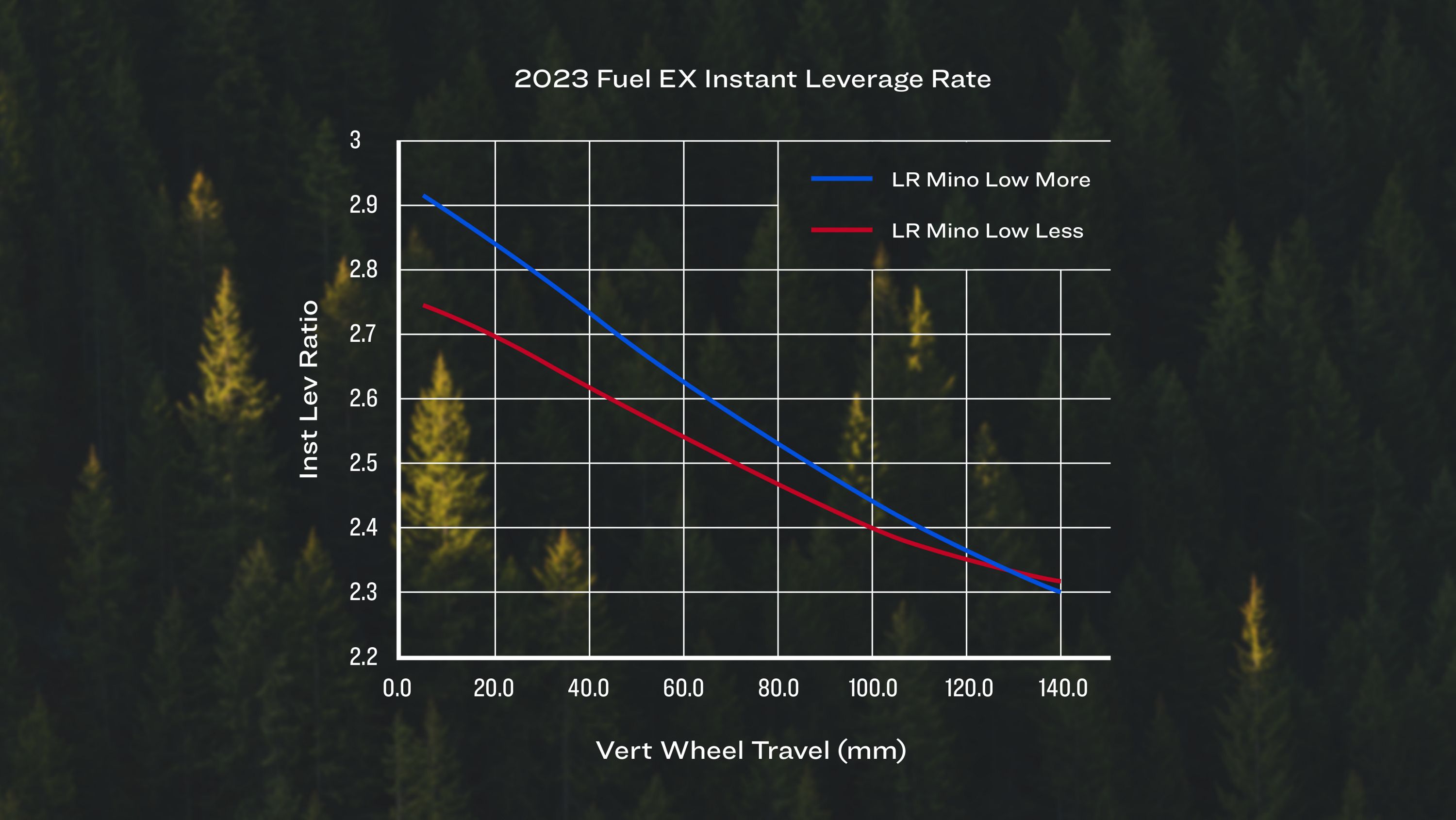

          Adjust the sus for full send

          Adjust leverage rate with just a flip of a chip. Ride it in the Less progressive setting for a plusher feel perfect for rugged trails with square-edge bumps. Flip it to More progressive when youre hitting big features and don’t want to bottom-out, or when you want to run a coil shock.

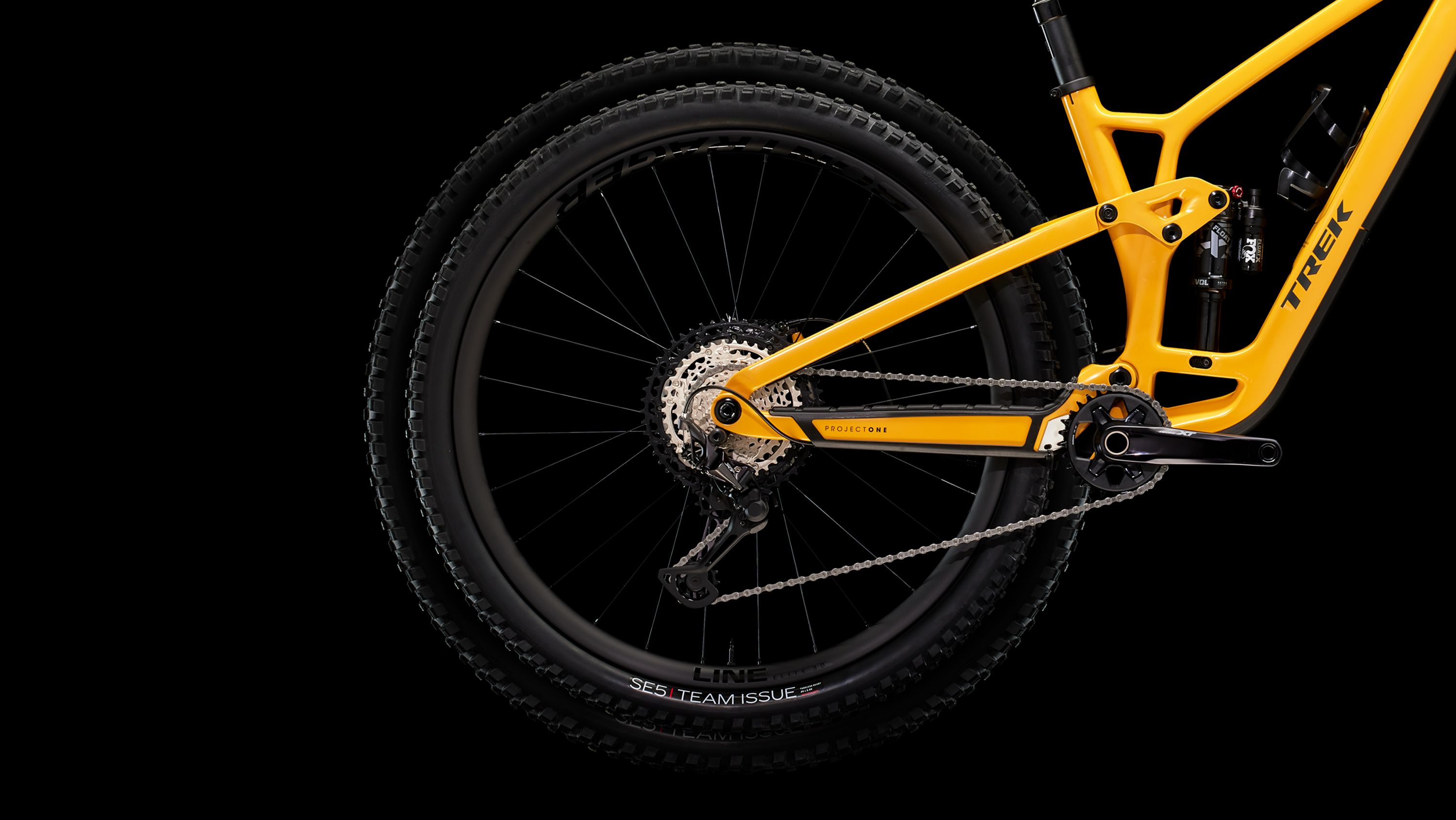

          Size-specific stays

          Size-specific chainstays provide balanced handling to keep the ride nimble for smaller riders and improve front wheel traction on climbs for taller riders.

          Business in the front, party in the back

          Craving the nimble ride of 27.5˝ wheels but don’t want to sacrifice the speed of a 29er? No need to choose. Fuel EX is mullet-ready, just throw Mino Link in high, toss on a 160mm fork, and get ready to party.


          Frame OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
          Fork Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel
          Shock Fox Performance Float X, 2-position damper, 185mm x 55mm
          Wheel Front Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29 // Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29 /
          Wheel Rear Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29 // Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29
          Tire Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29x2.50
          Tire Part Bontrager TLR sealant, 6oz
          Rim Strip Bontrager TLR
          Skewer Rear Bontrager Switch thru axle, removable lever
          Shifter Shimano XT M8100, 12 speed
          Rear Derailleur Shimano XT M8100, long cage
          Crank Shimano XT M8120, 30T, 55mm chainline, 170mm length
          Bottom Bracket Shimano BB-MT501 BSA
          Cassette Shimano XT M8100, 10-51, 12 speed
          Chain Shimano Ultegra/XT M8100, 12 speed
          Brake Shimano XT M8120 4-piston hydraulic disc // Shimano XT M8120 4-piston hydraulic disc
          Brake Rotor Shimano RT86, 6-bolt, 203mm // Shimano RT86, 6-bolt, 180mm
          Saddle Bontrager Arvada, austenite rails, 138mm width // Verse Short Comp, steel rails, 145mm width
          Seatpost Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
          Handlebar Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length
          Stem Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 35mm length
          Headset Integrated cartridge bearing, 1-1/8 top, 1.5 bottom, angle adjust cup compatible
          Grips Bontrager XR Trail Elite, nylon lock-on

          Geometry Chart

          B B Drop 3.1
          B B Height 34.3
          Chainstay Length 43.8
          Eff Seat Tube Angle 77.7°
          Eff Top Tube 62.6
          Frame Reach 49.1
          Frame Size Letter L
          Frame Stack 61.7
          Head Angle 65.1°
          Head Tube Length 10.5
          Offset 4.4
          Position High
          Seat Tube 43.5
          Seat Tube Angle 71.4°
          Standover 75.4
          Trail 12.5
          Wheelbase 124.9
          Wheel Size 29"
